Hemsley

Colonial Revival
Share on email
Share on print
Share on facebook
Share on pinterest
Plan Details

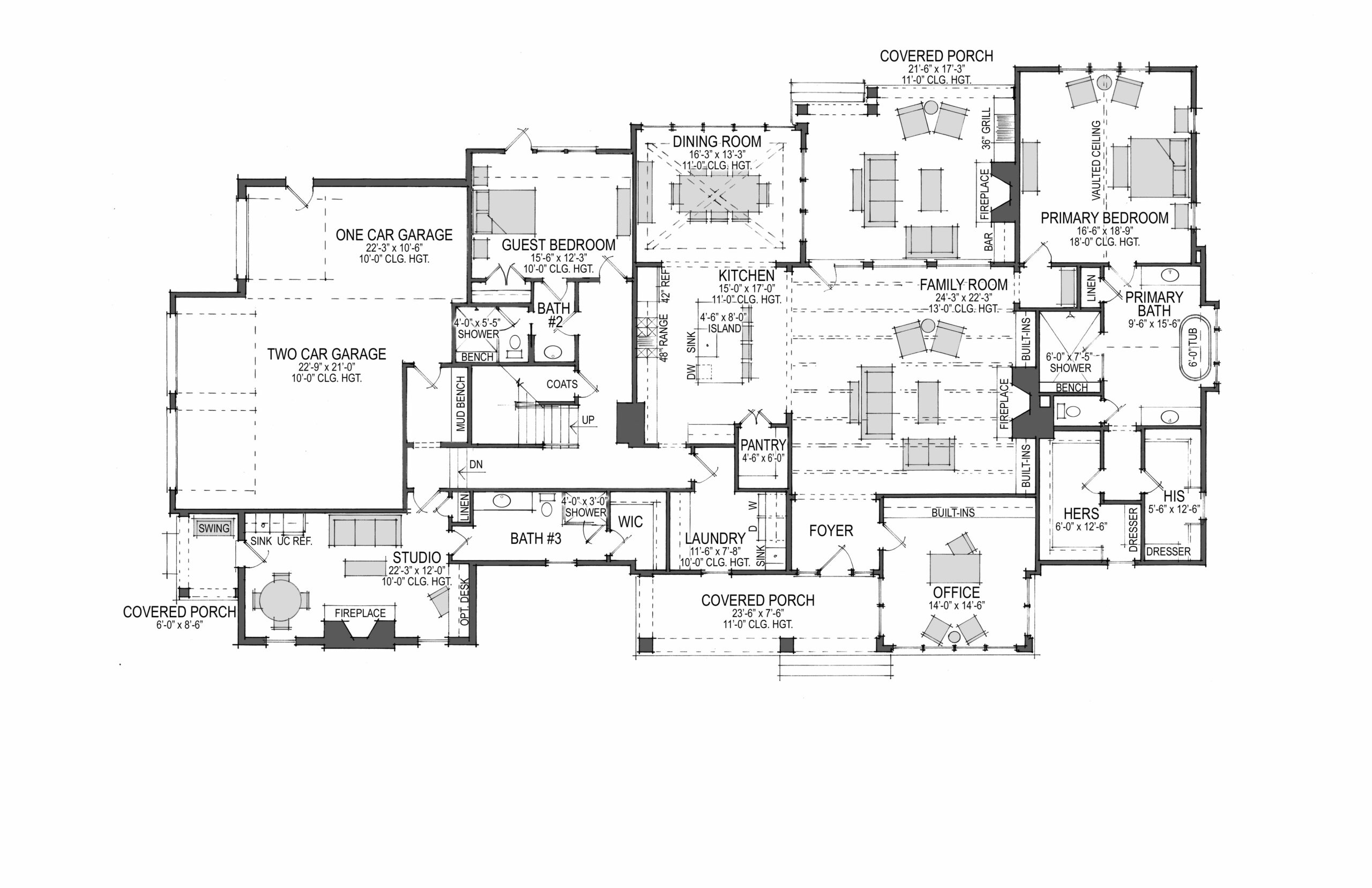

Floor plans
Overall Dimensions: 105′ w x 59′ d

Tap to enlarge

Share Plan
Share on email
Email
Share on print
Print
Share on facebook
Facebook
Share on pinterest
Pinterest
Description

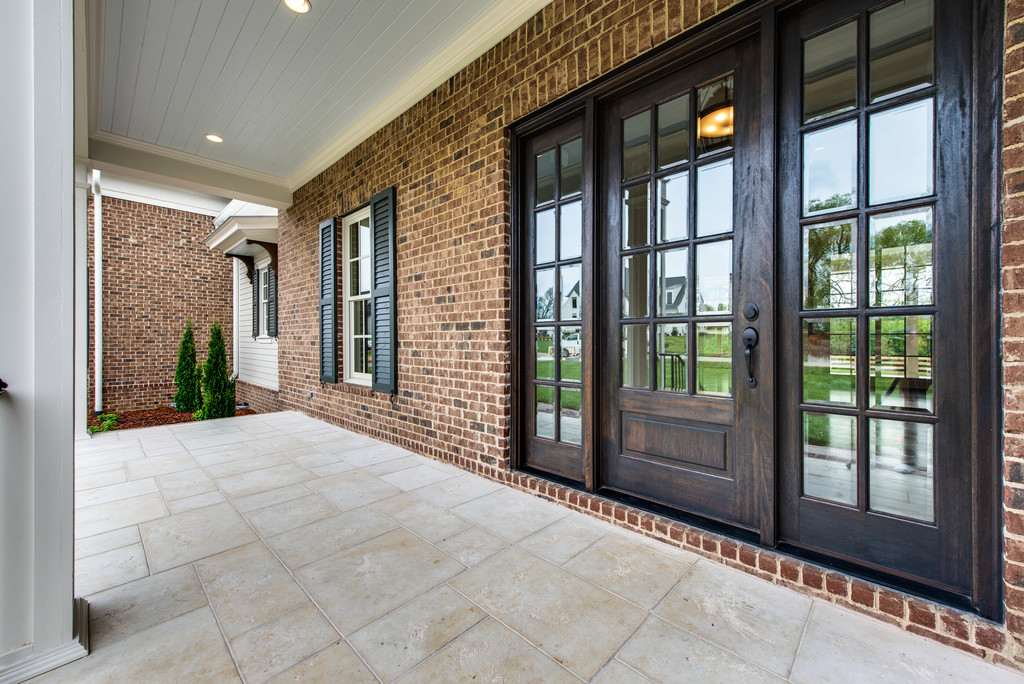

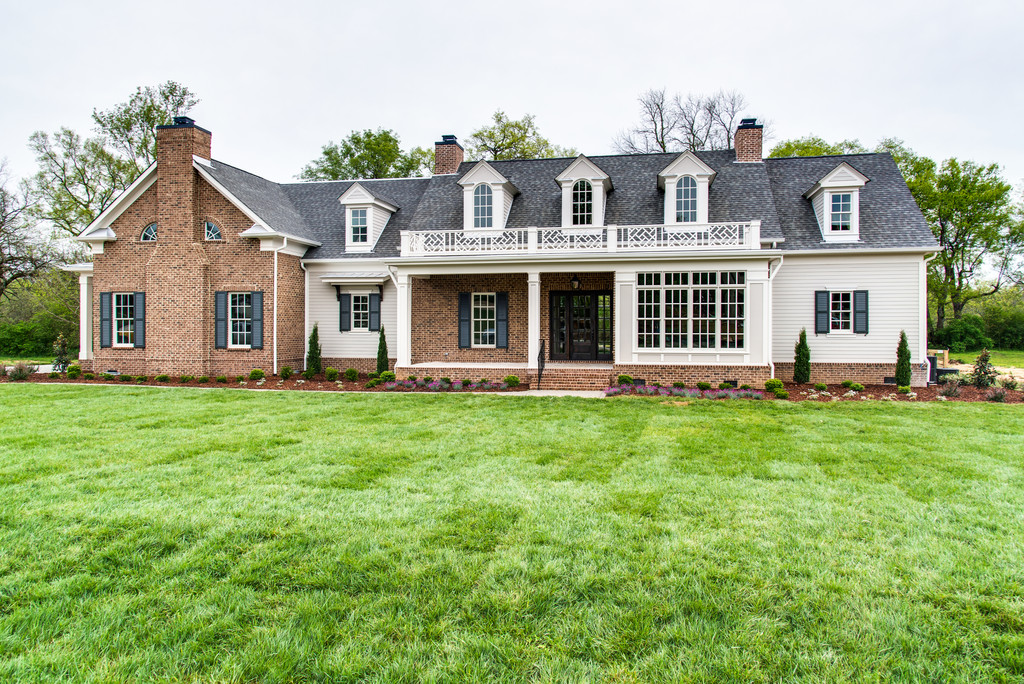

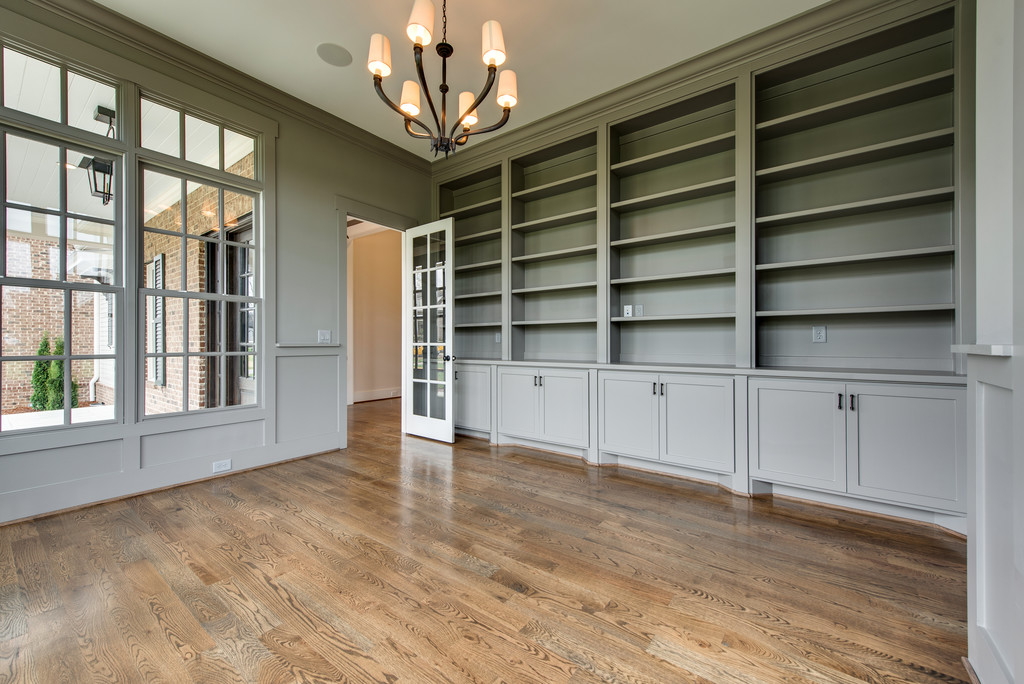

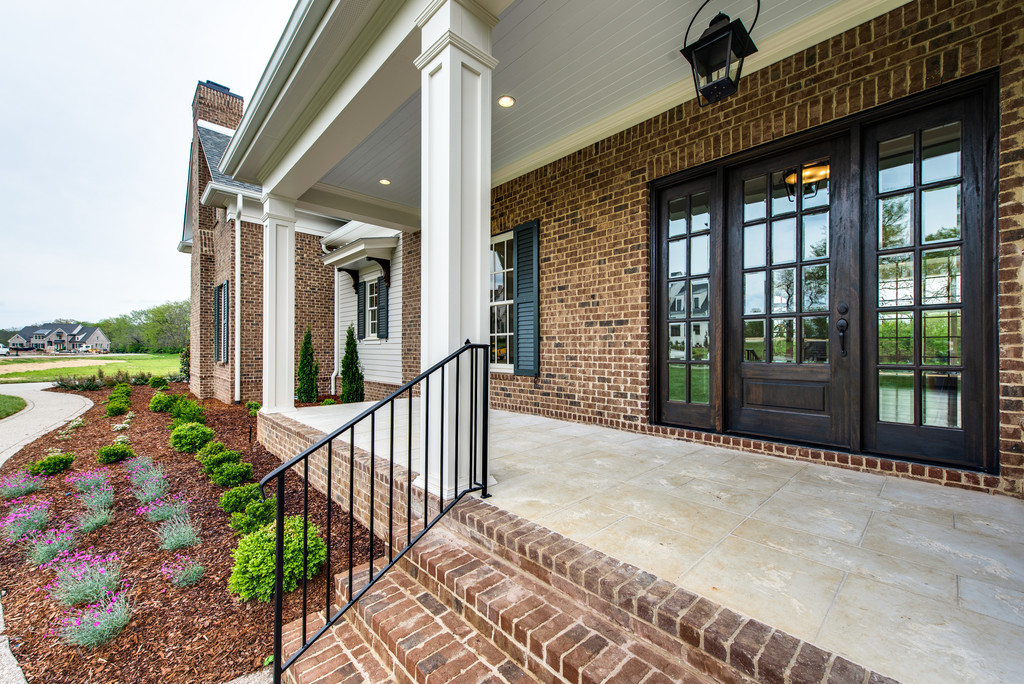

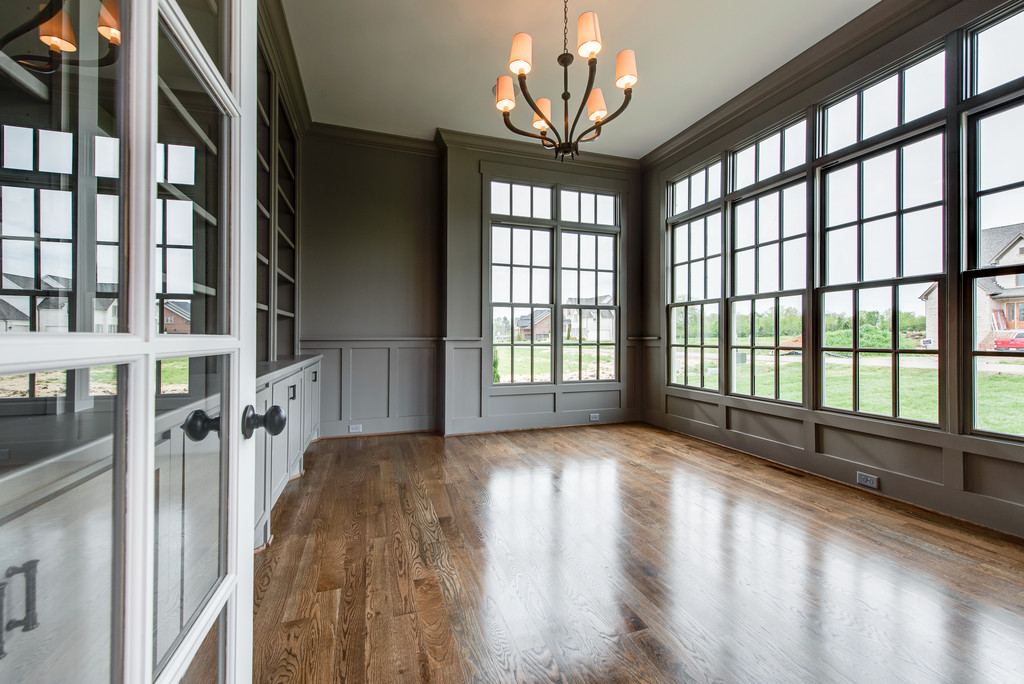

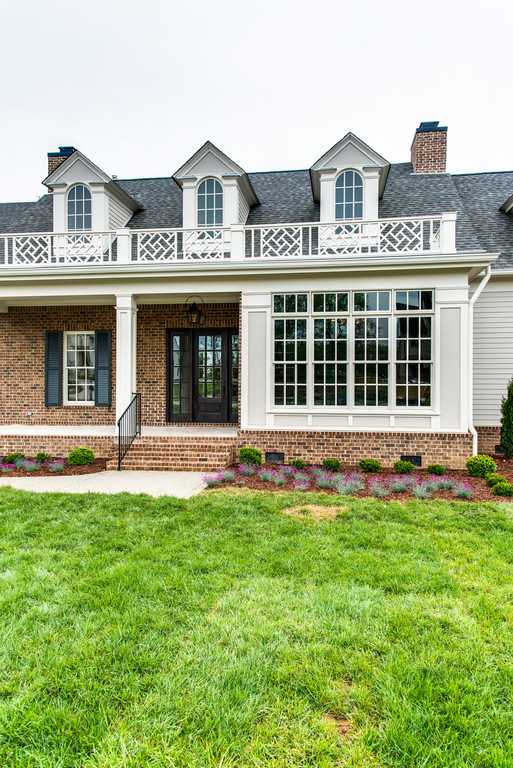

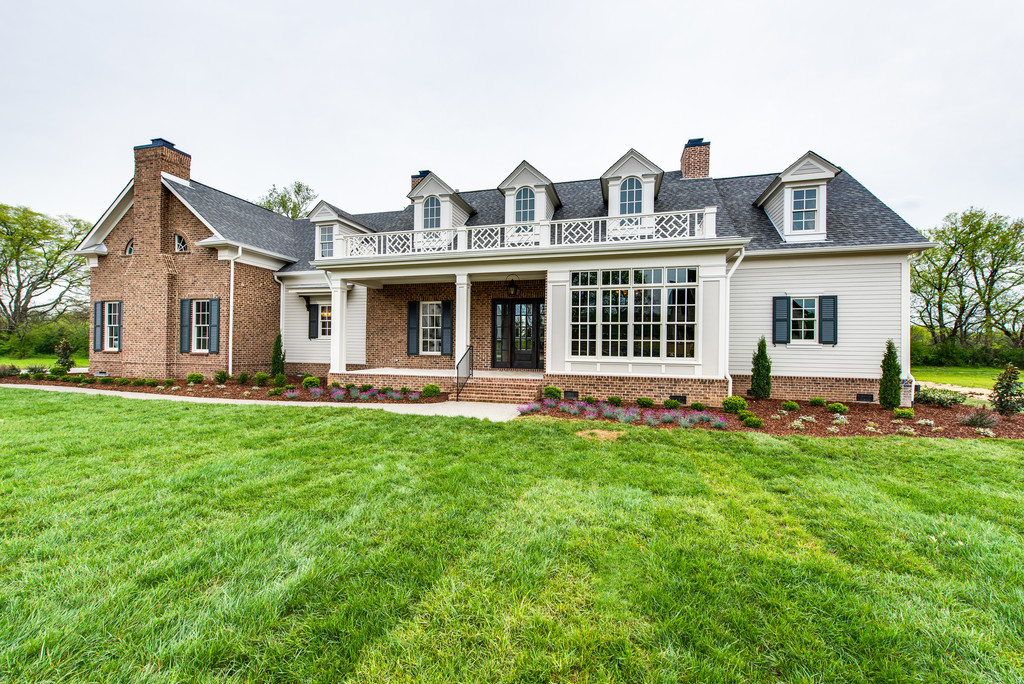

The Hemsley is a spacious 5,294 square foot colonial revival home with four bedrooms, five and a half bathrooms, three garage bays, and a unique first floor studio space. Entry from the large covered porch leads into the foyer with easy access to the office. With a full wall of windows, the front of the property is fully visible from this room.

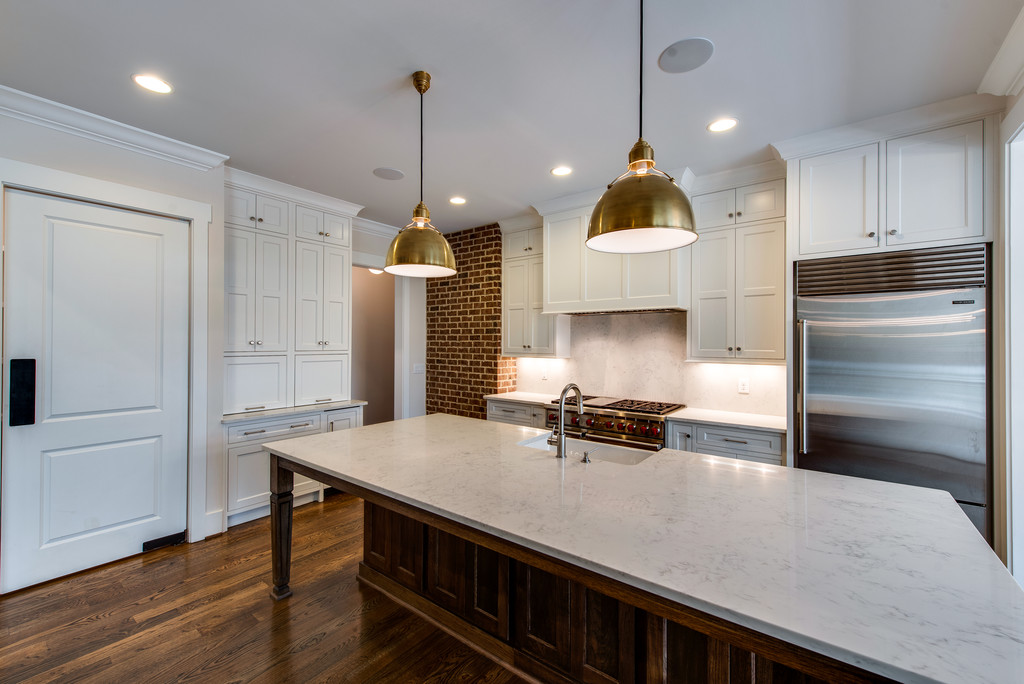

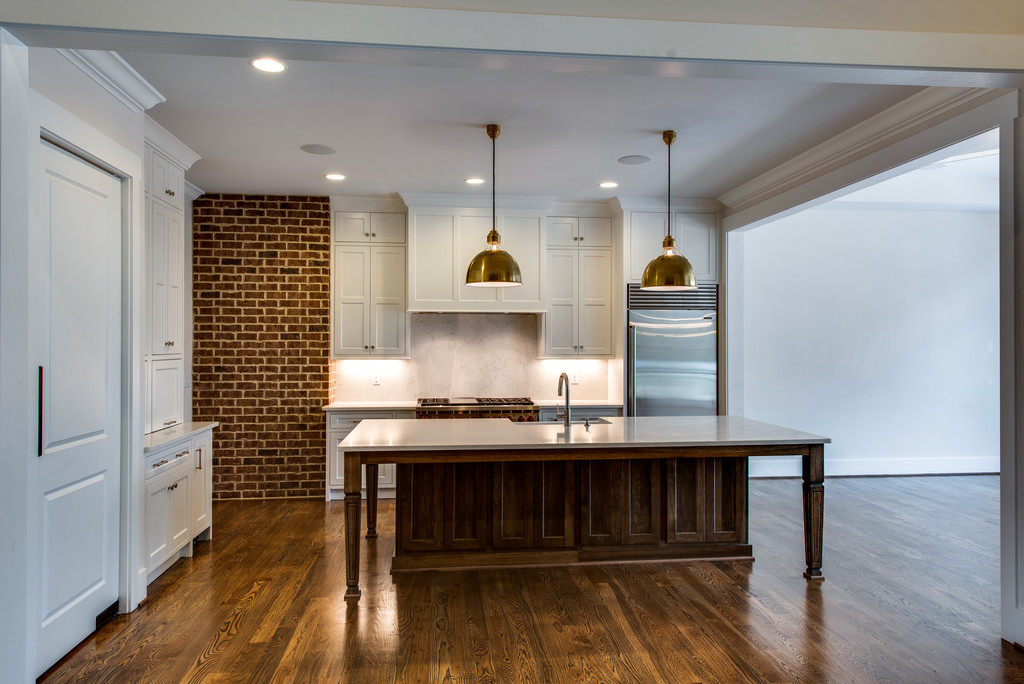

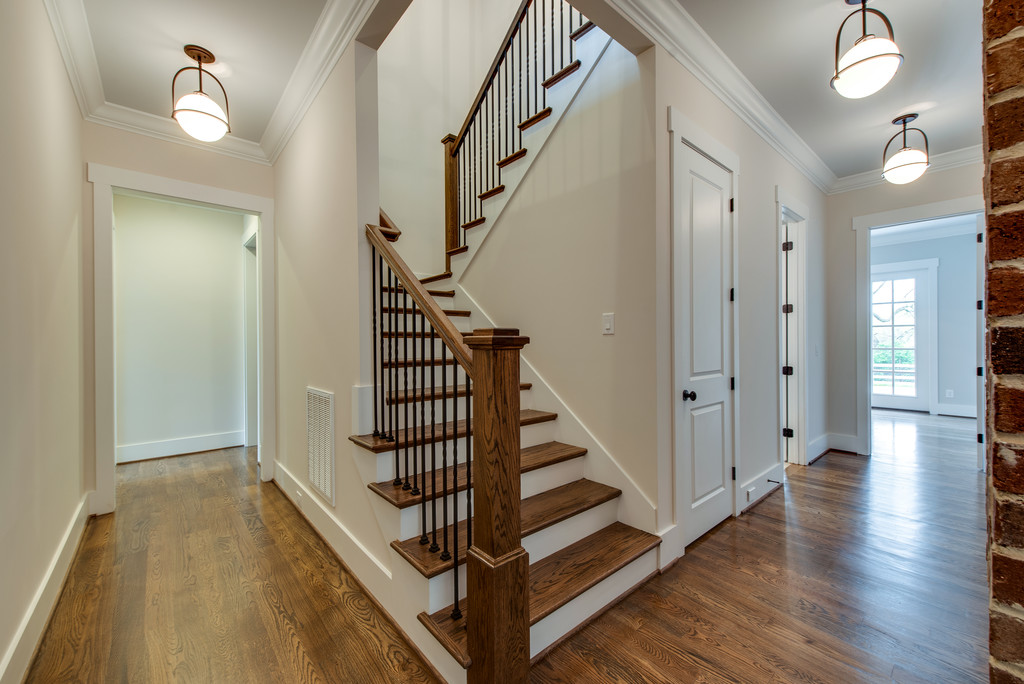

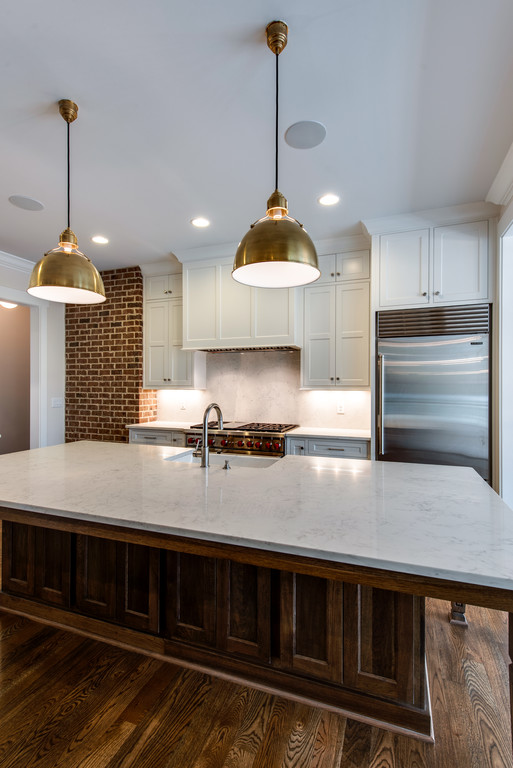

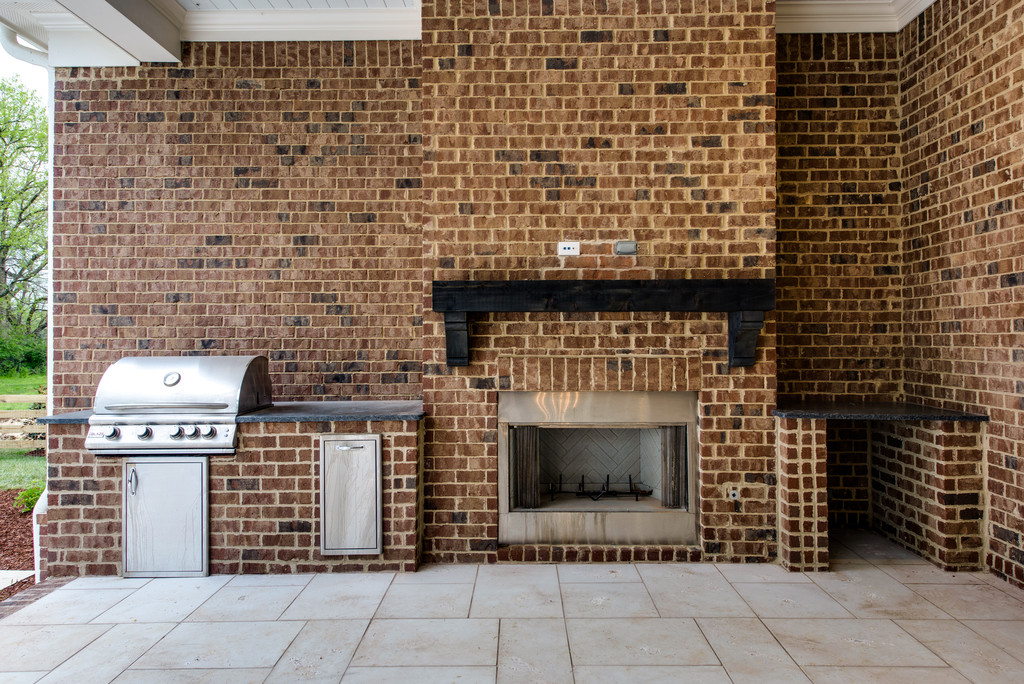

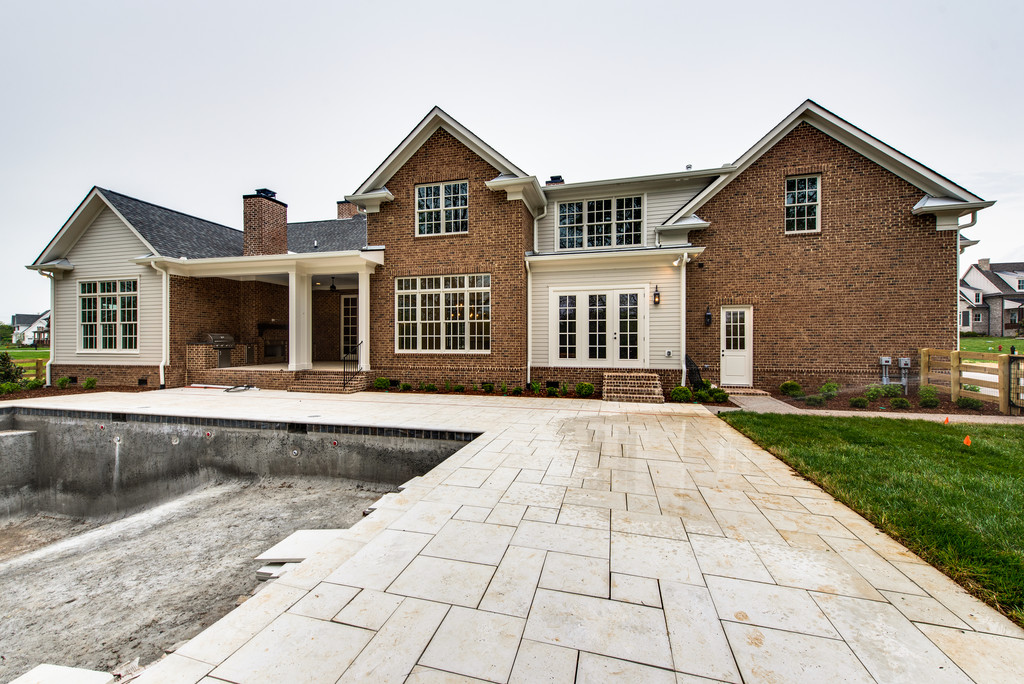

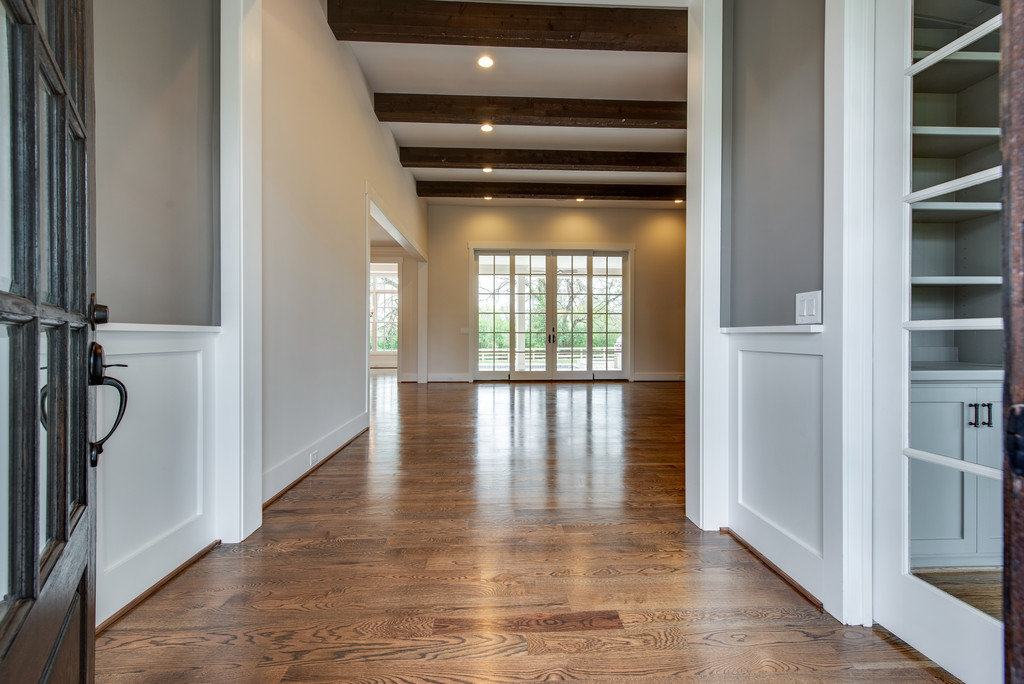

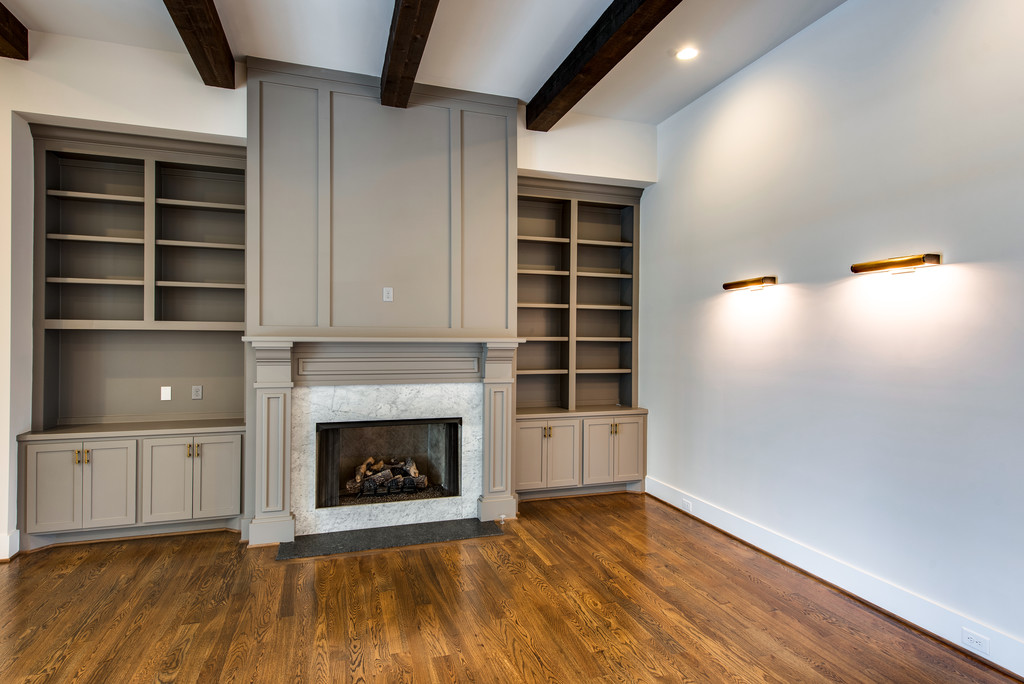

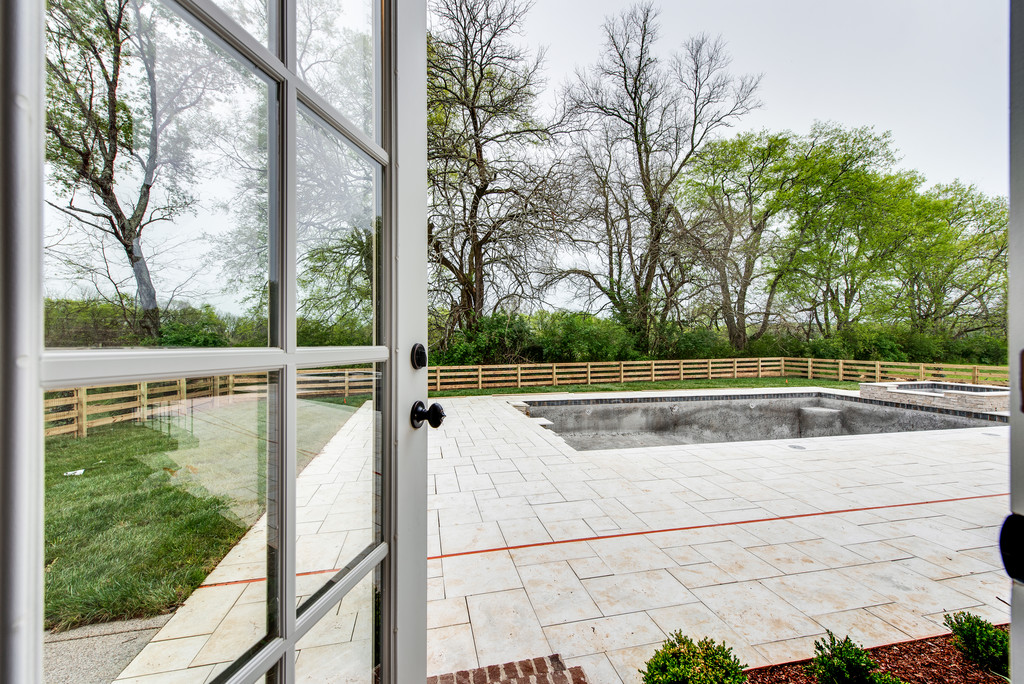

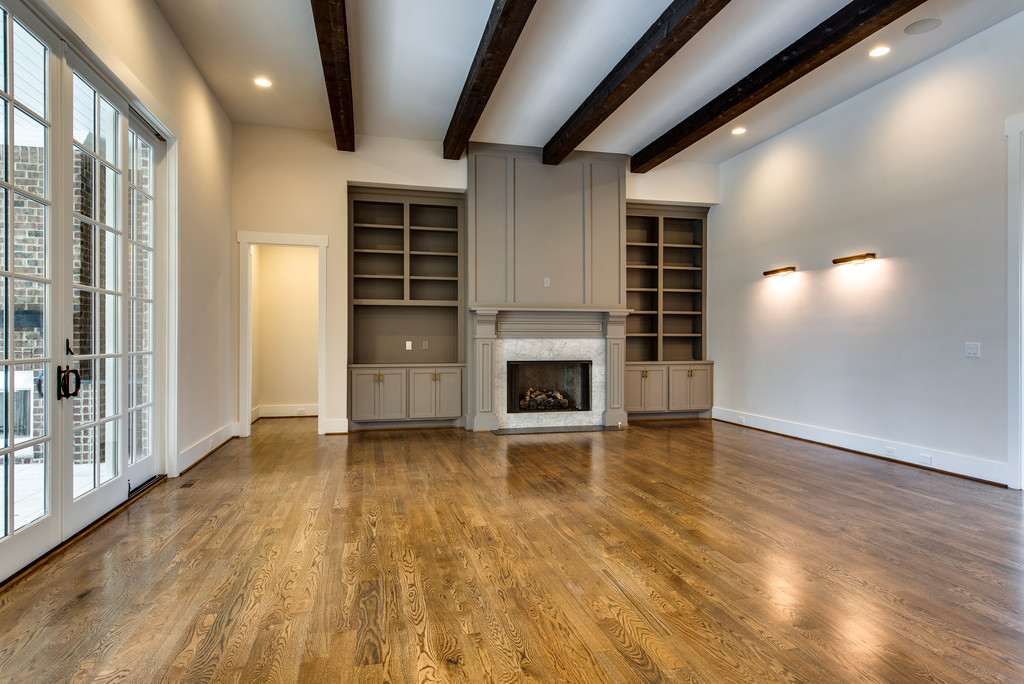

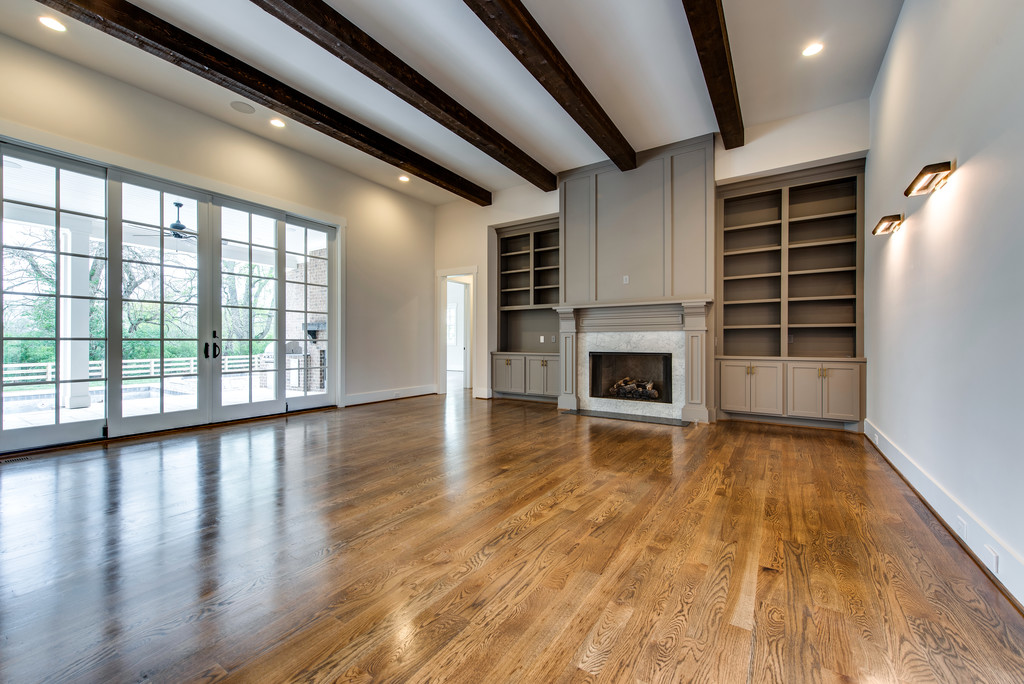

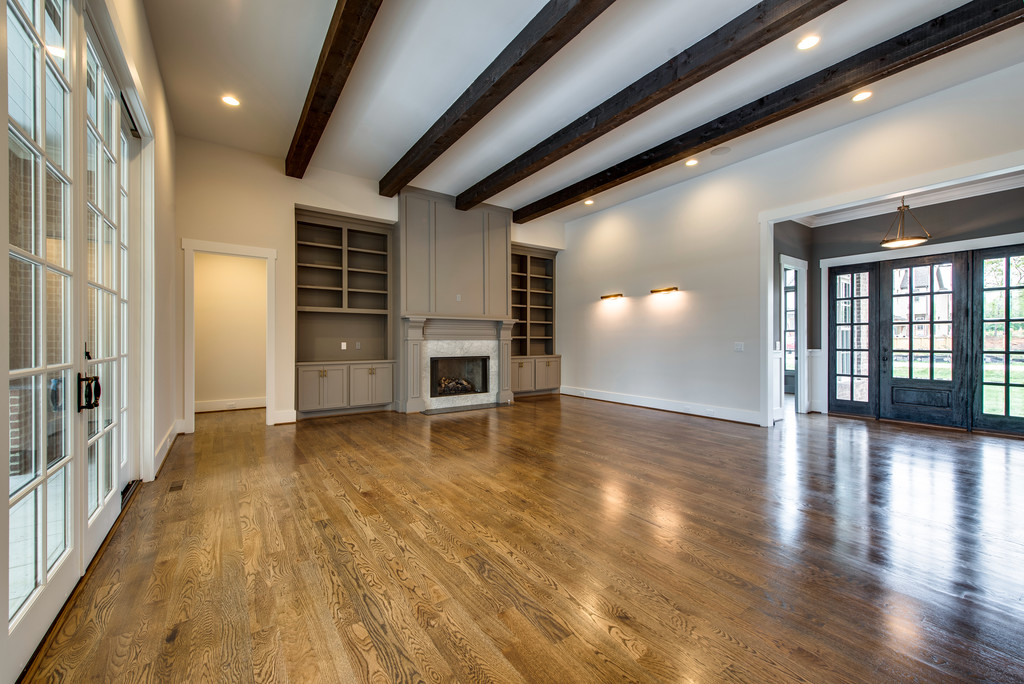

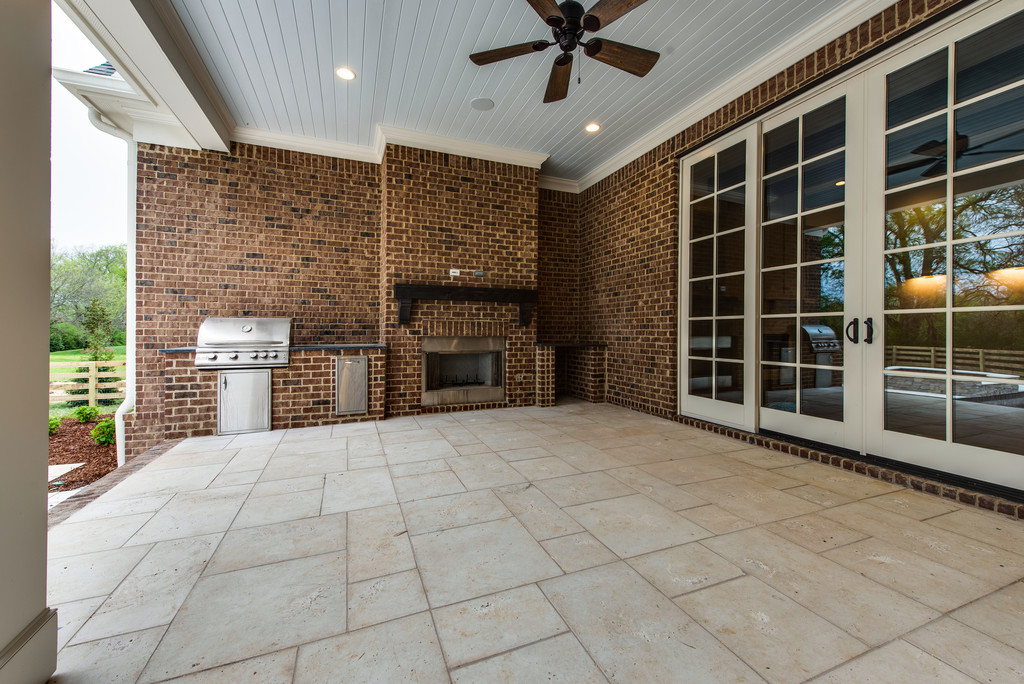

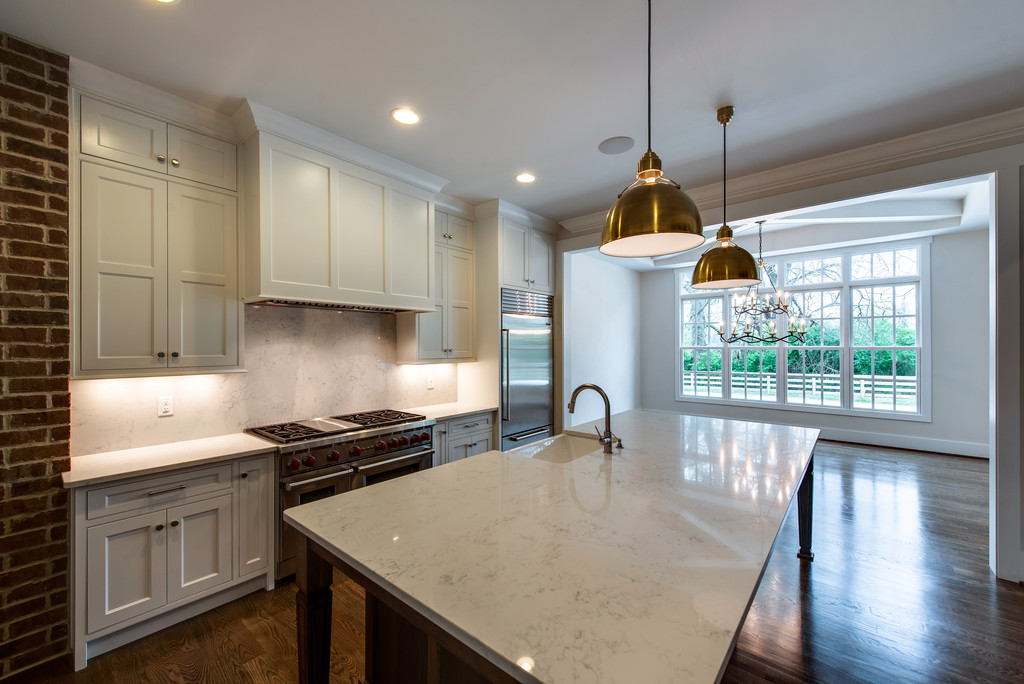

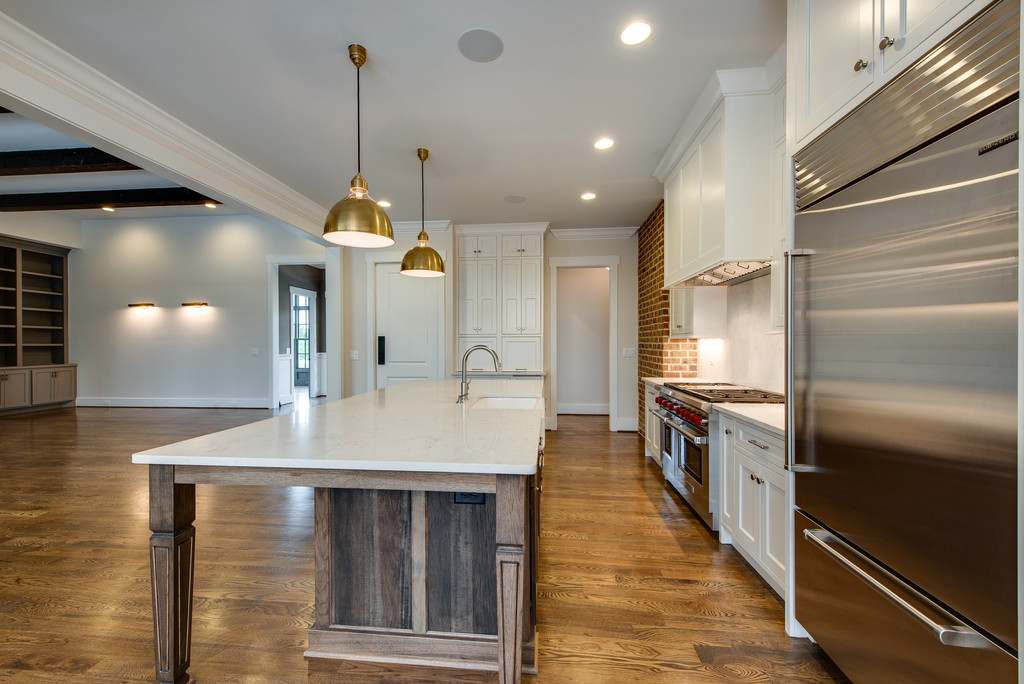

The foyer leads directly into the expansive family room, complete with a fireplace, built ins, and full views of the rear of the property. The open concept kitchen boasts a large island with a sink and ample storage, a functional pantry, and access to the stairs, laundry, garage, and studio. The large covered rear porch is accessible from the family room, providing the perfect flow for entertaining friends or relaxing with family by the outdoor fireplace.

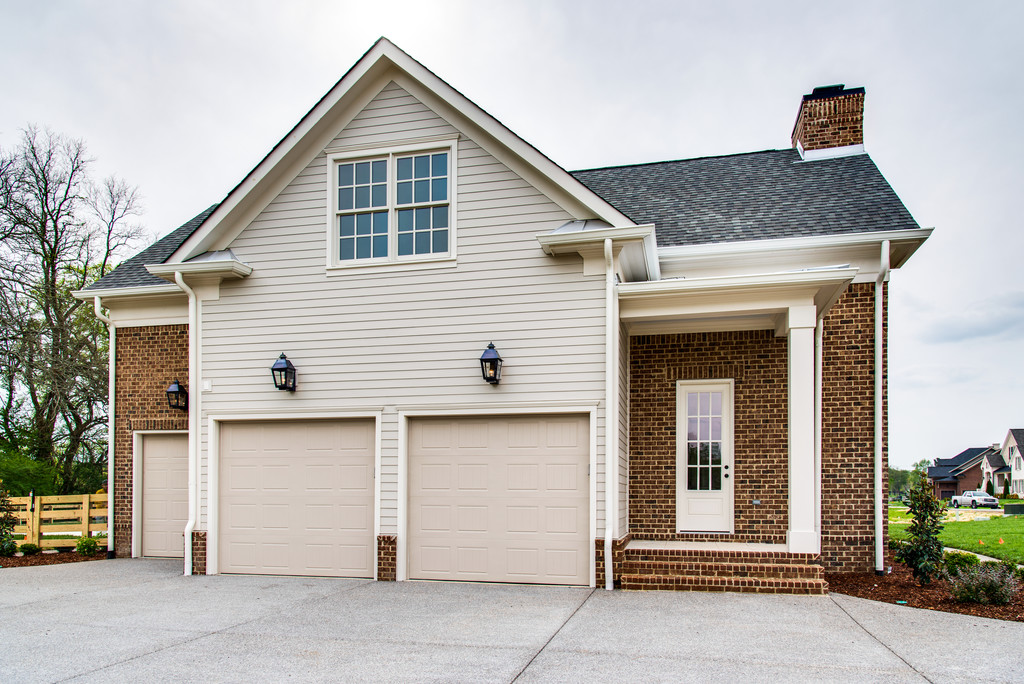

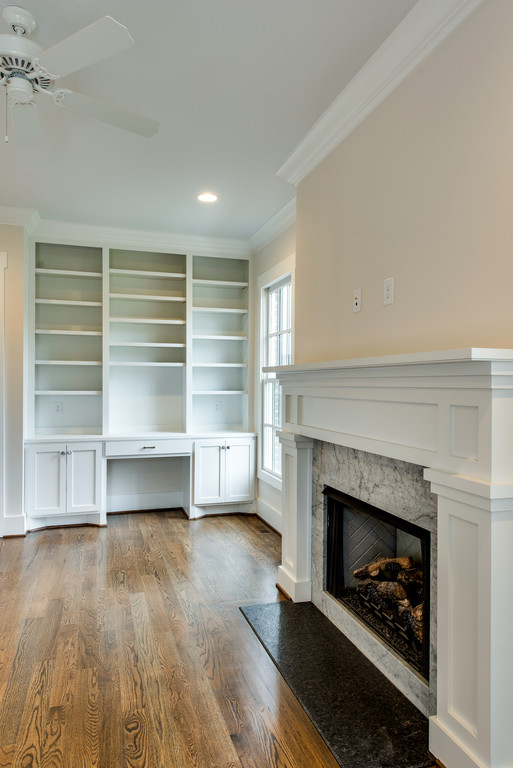

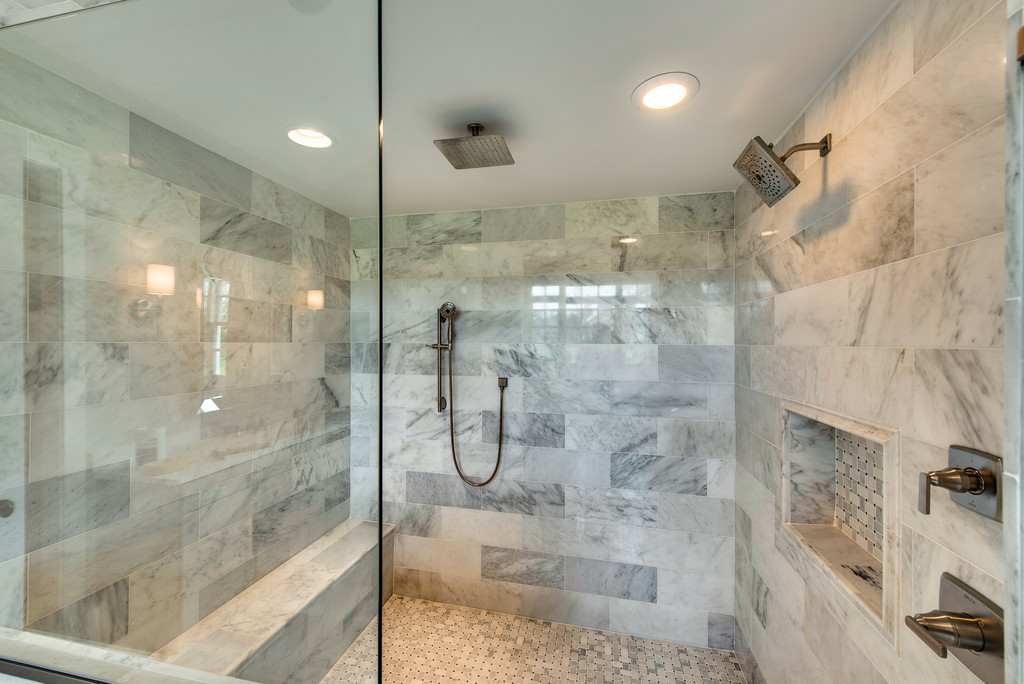

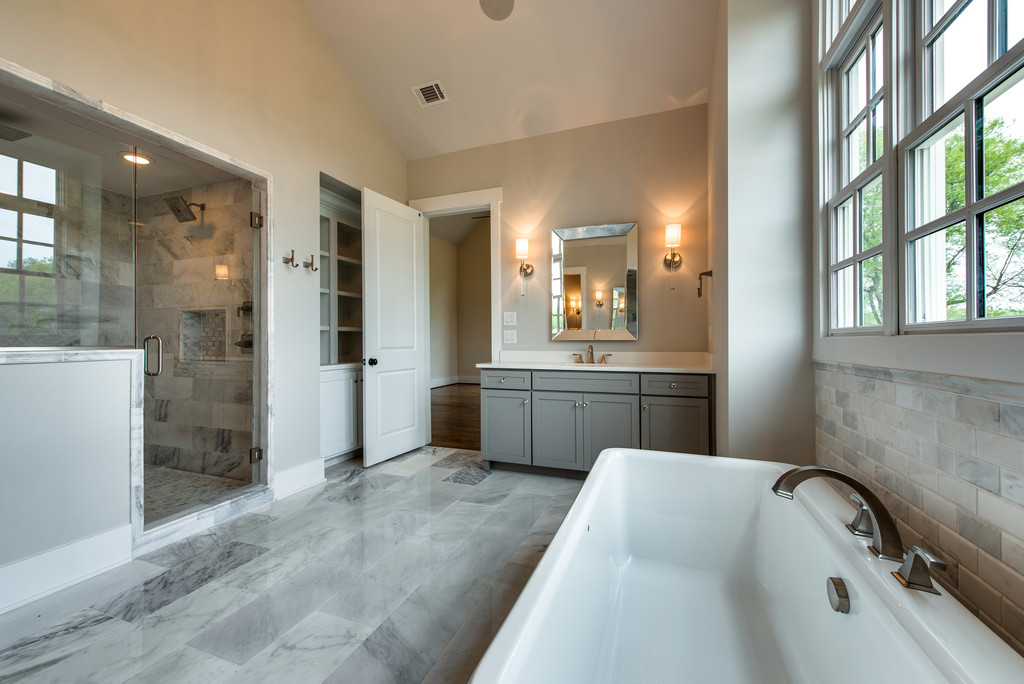

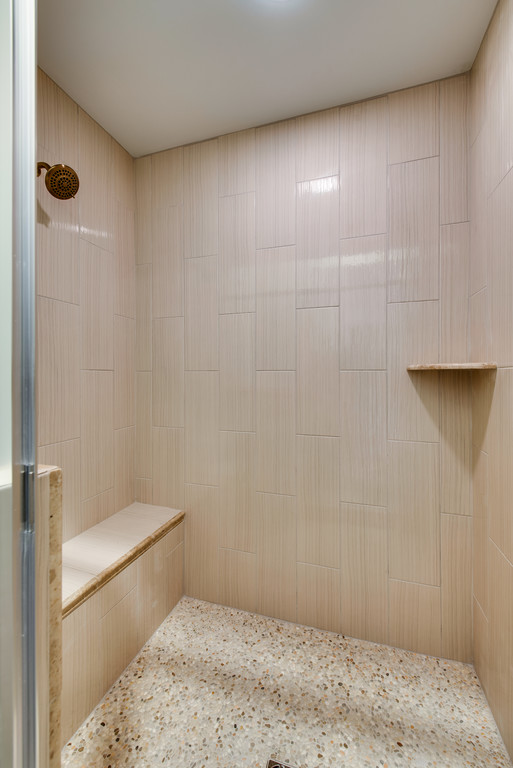

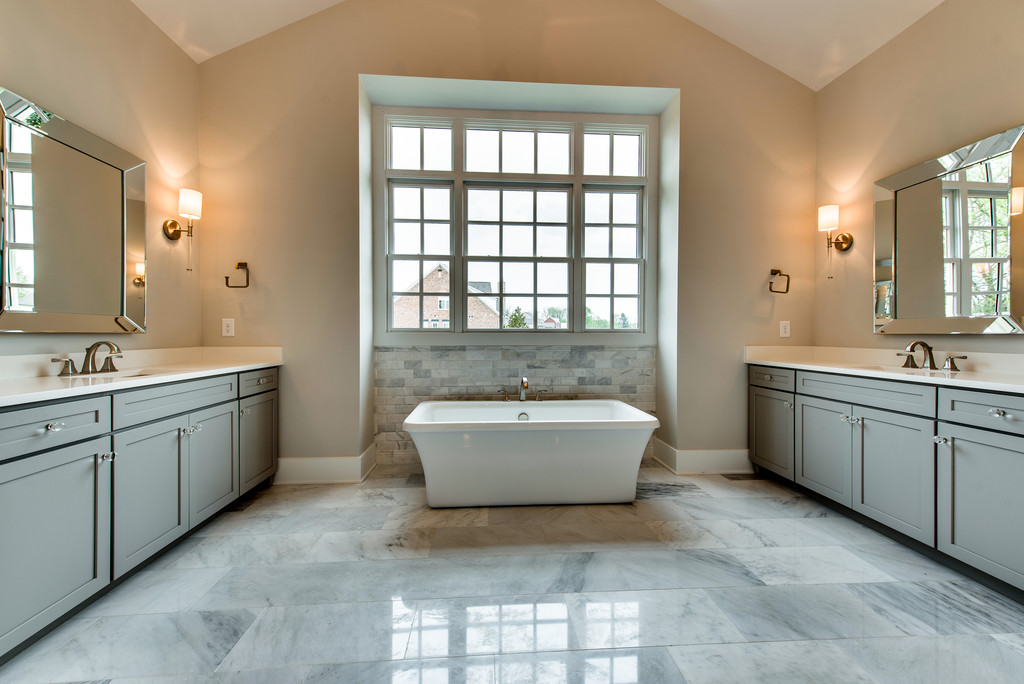

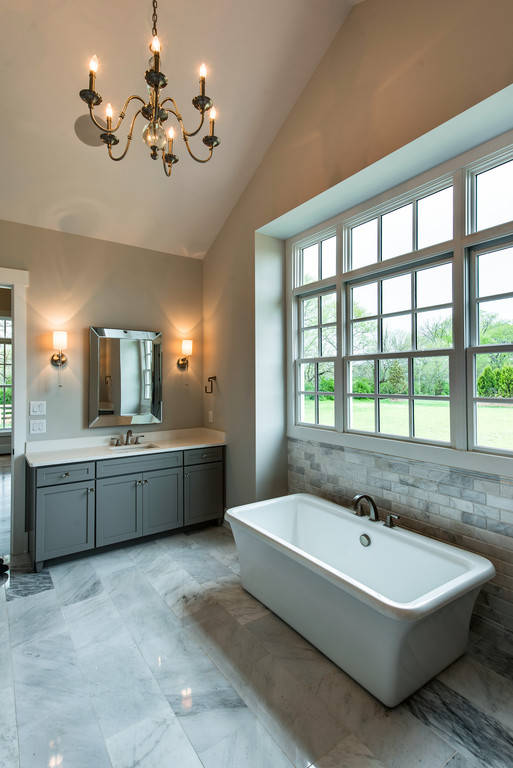

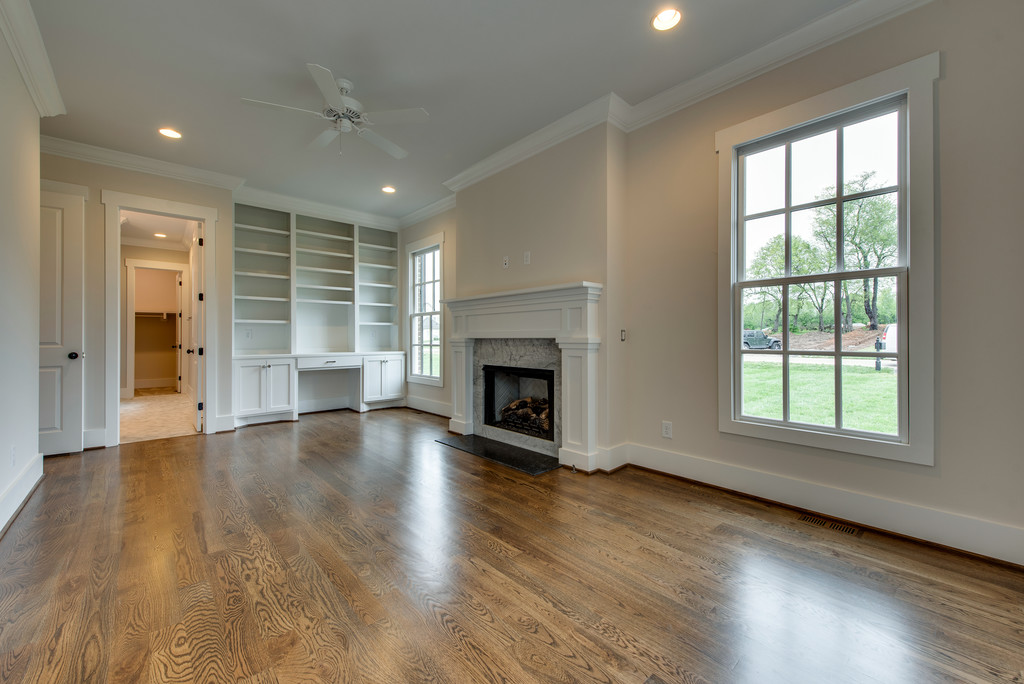

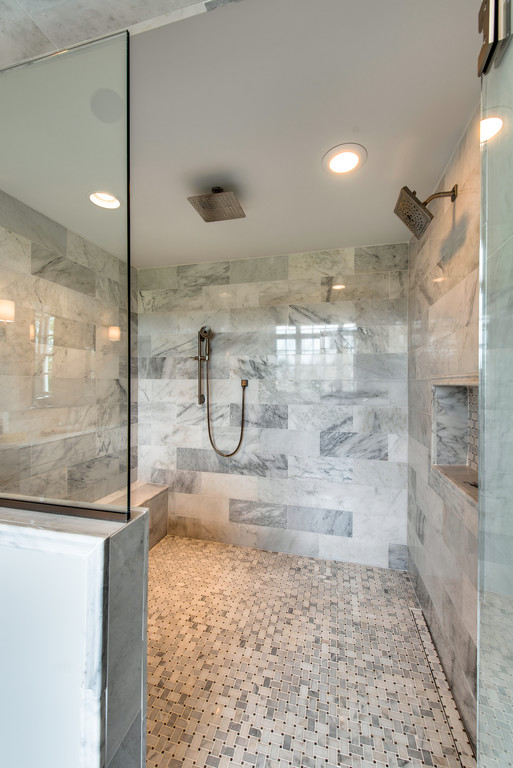

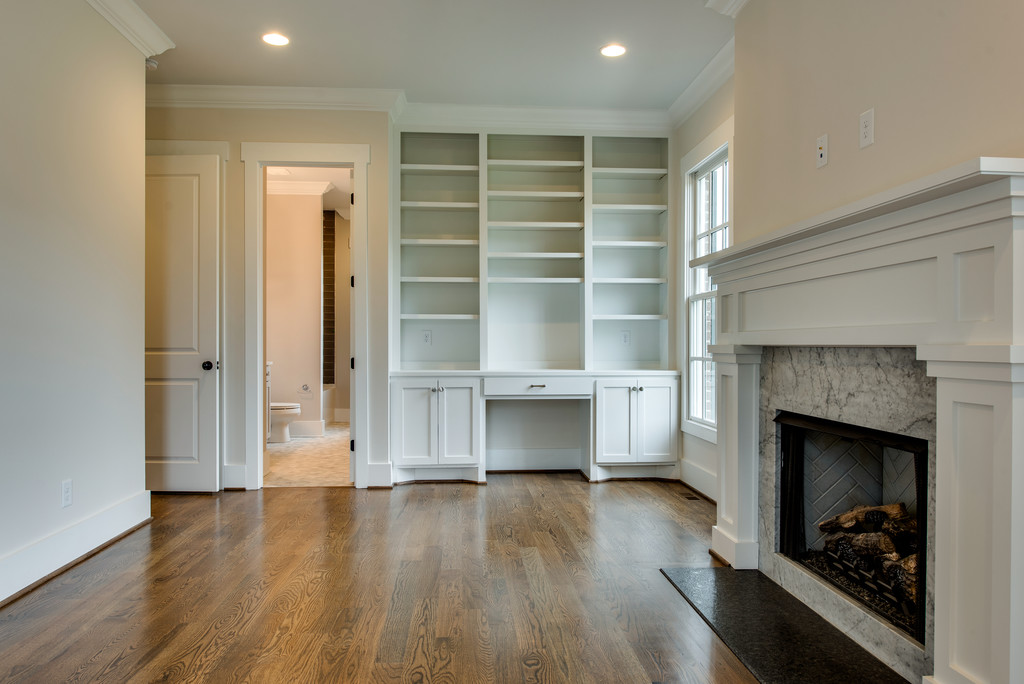

Located next to the family room, the luxurious main-floor primary suite has vaulted ceilings, his and hers closets, a large enclosed shower, and linen storage. The guest suite is on the opposite side of the home, allowing for additional privacy for both guest and host. The unique studio space in the front of the home is a wonderful addition. With a private covered porch entry, fireplace, walk in closet, kitchenette, and full bath, the studio is perfect for a mother in law, an extended stay guest, or an older child ready for a bit more freedom and privacy.

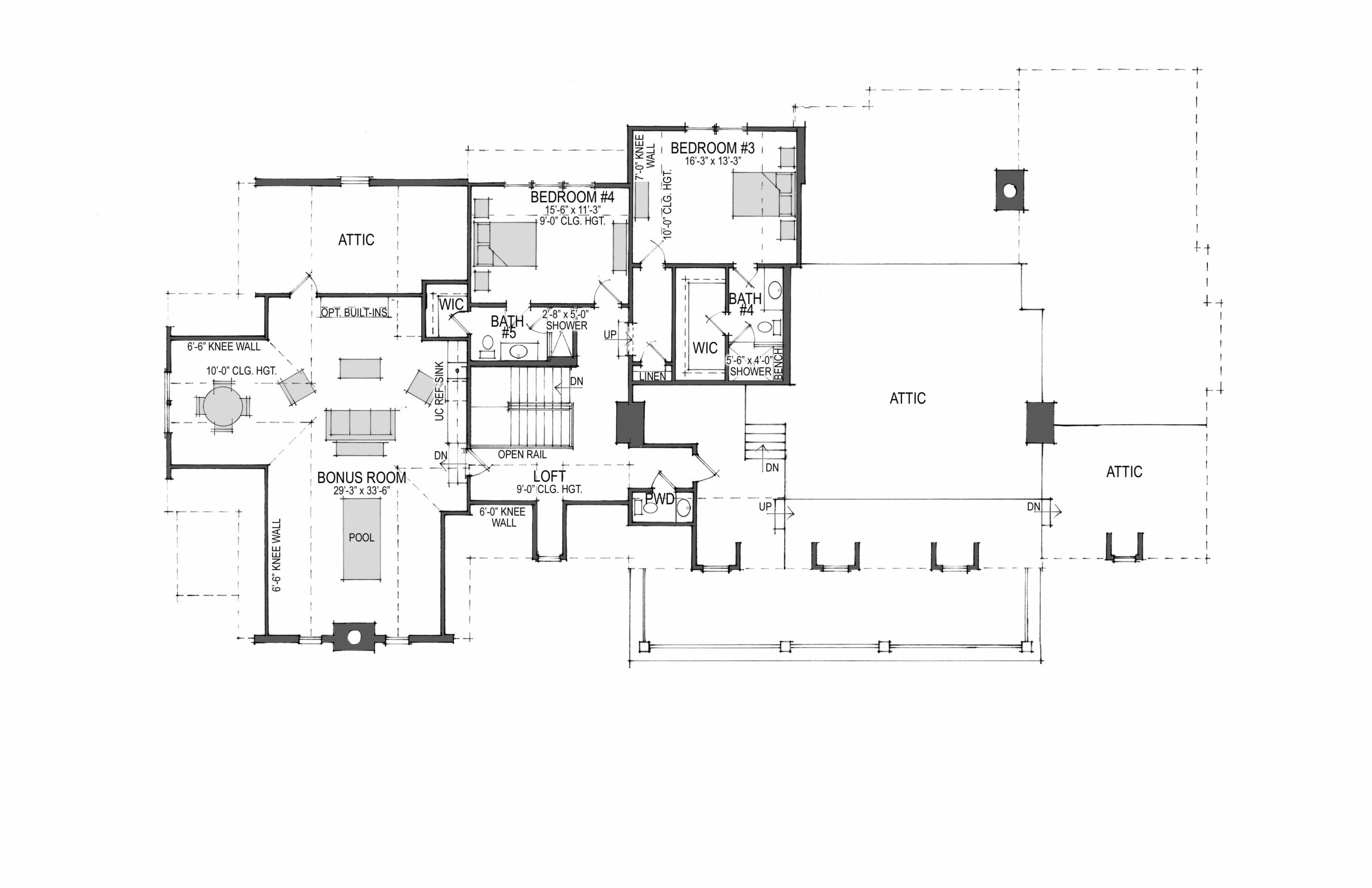

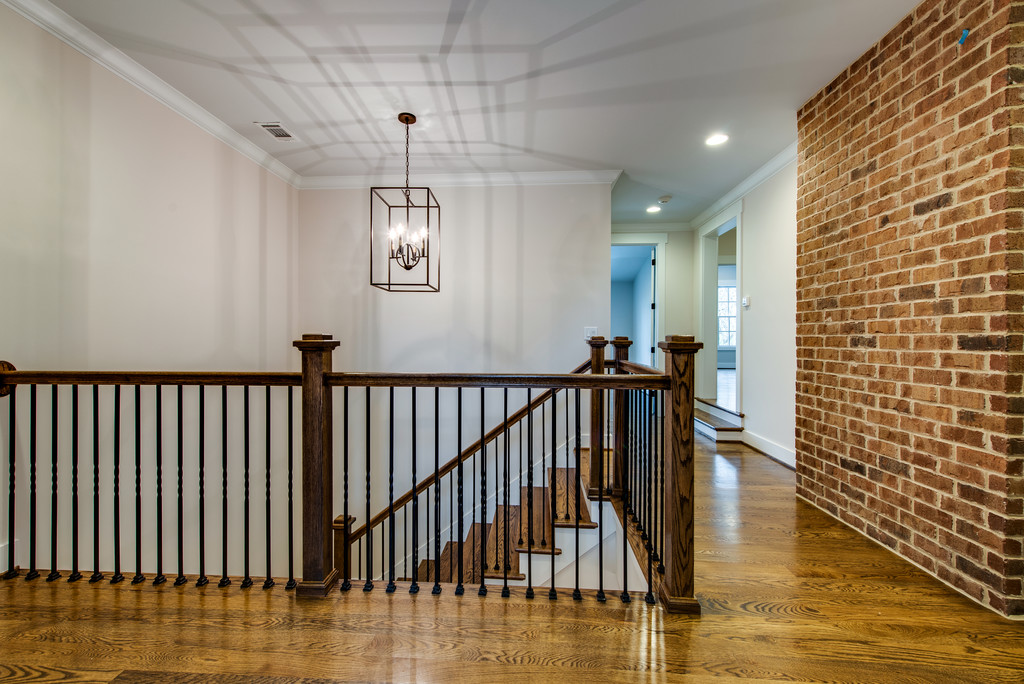

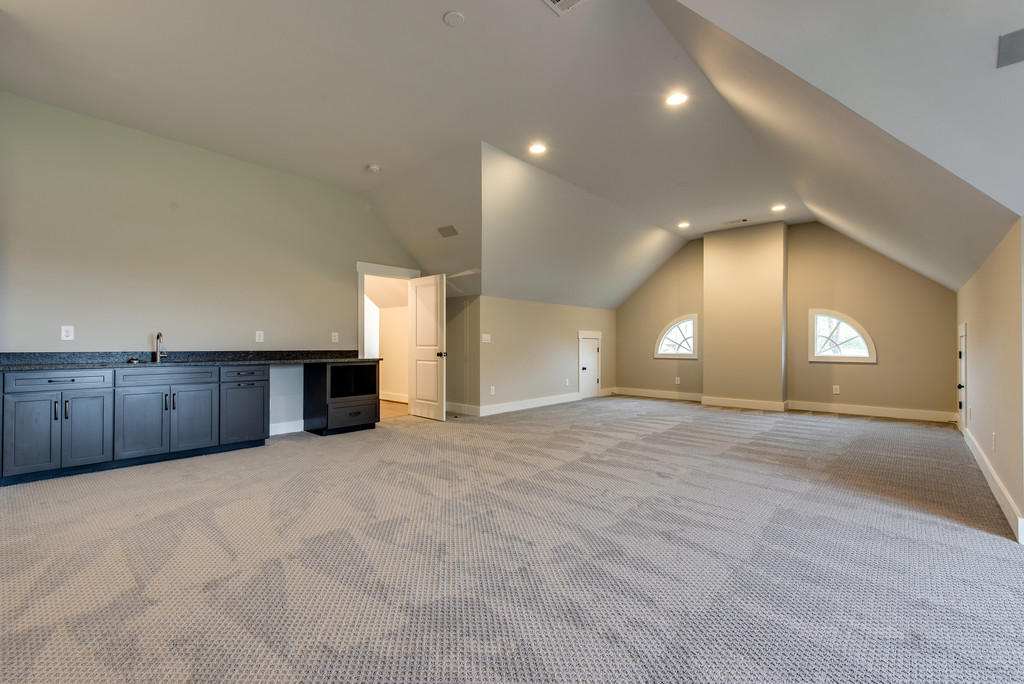

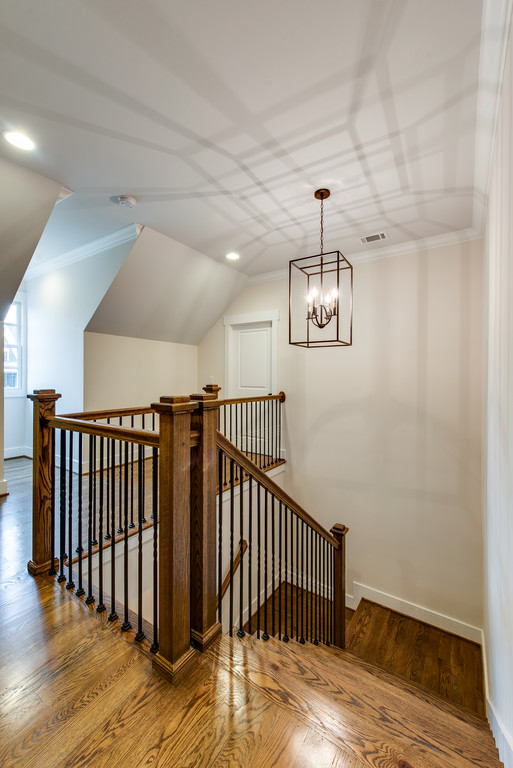

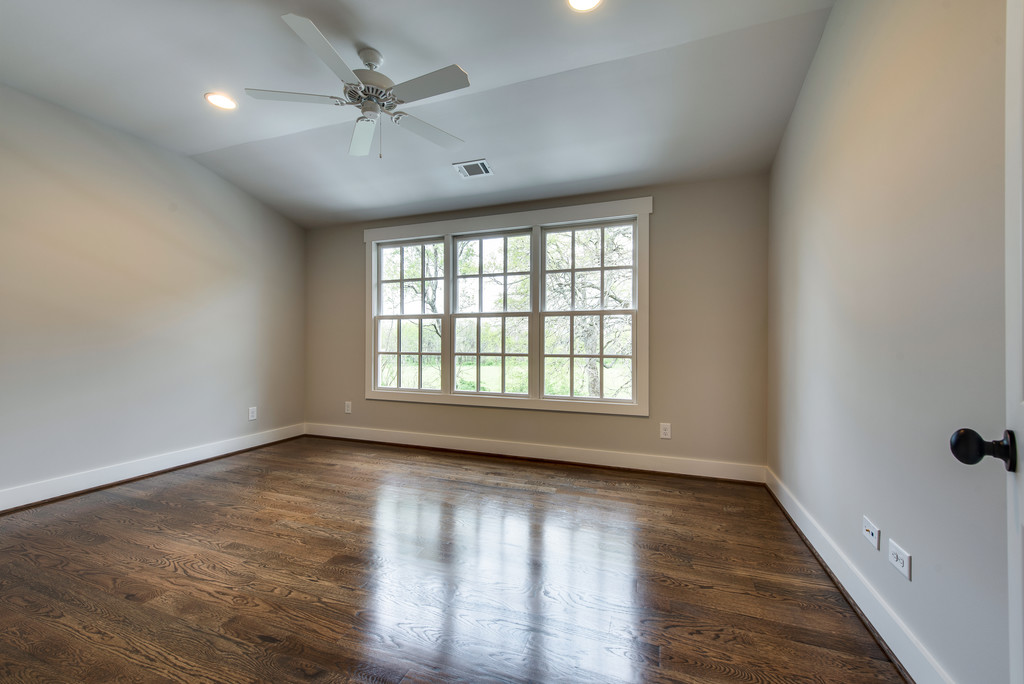

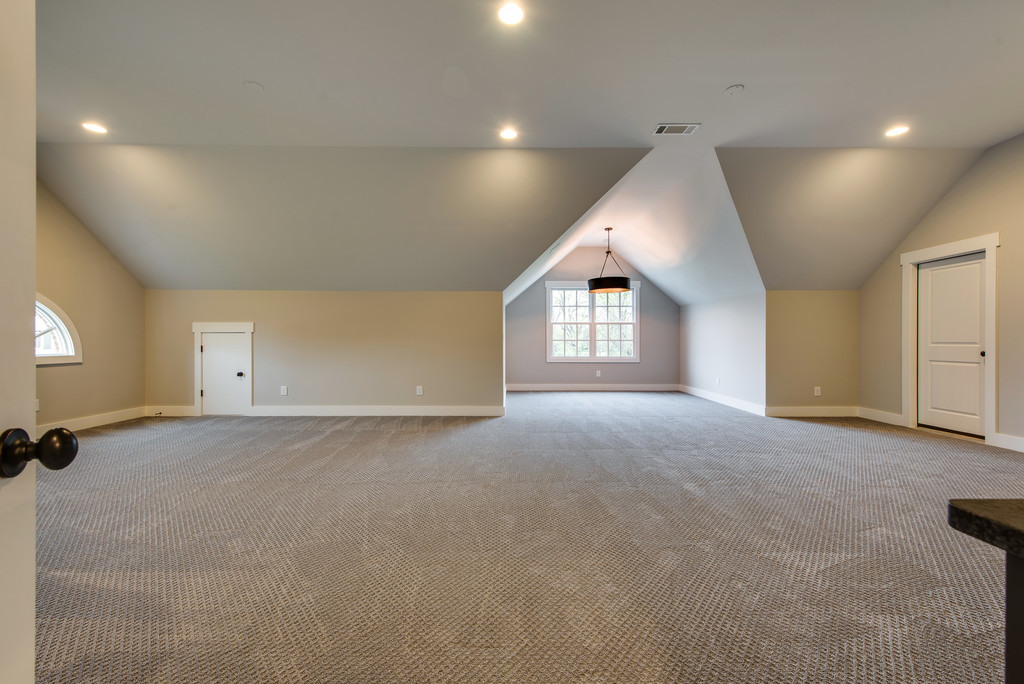

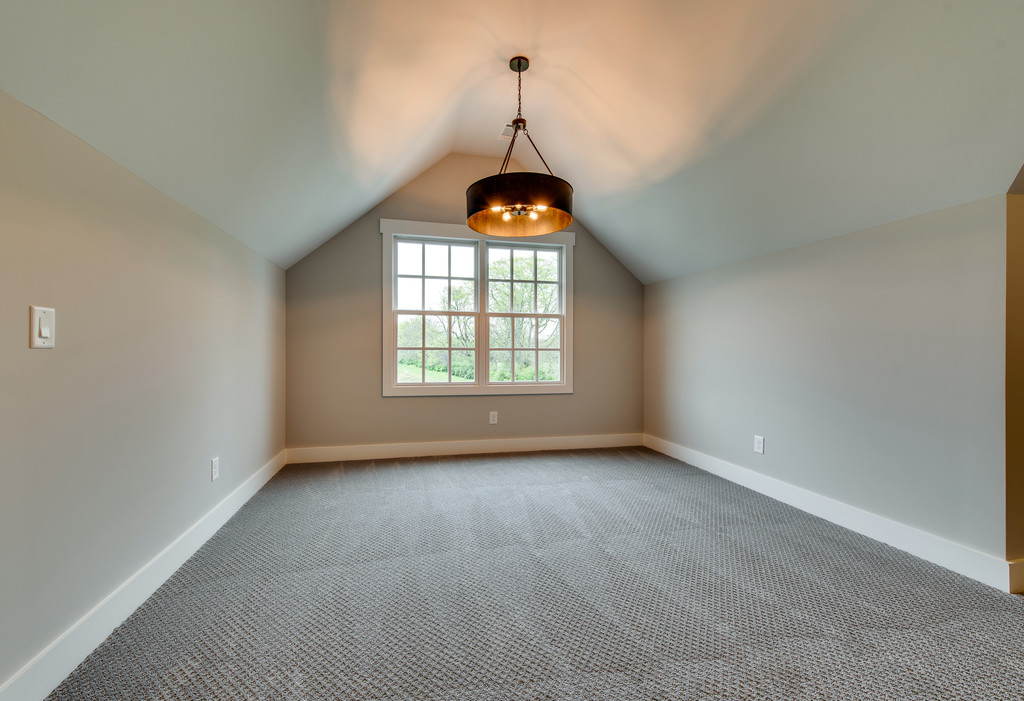

At the top of the stairs, a loft area and dormer window add interest and reading nook potential. The second floor is home to two additional bedrooms with full baths and walk in closets, as well as an expansive bonus room. With a wet bar and room for a pool table, a poker table, and a spacious seating area, this bonus room provides the perfect getaway for teenagers and their friends, or would make an ideal playroom or extra entertaining space. Walk in storage off of the bonus room completes the second floor of the Hemsley.

At a Glance
  •  5,294 square feet
  • 4 Bedrooms, 5 Bathrooms and 1 Half Bath
  • Private first floor guest suite
  • First floor studio space

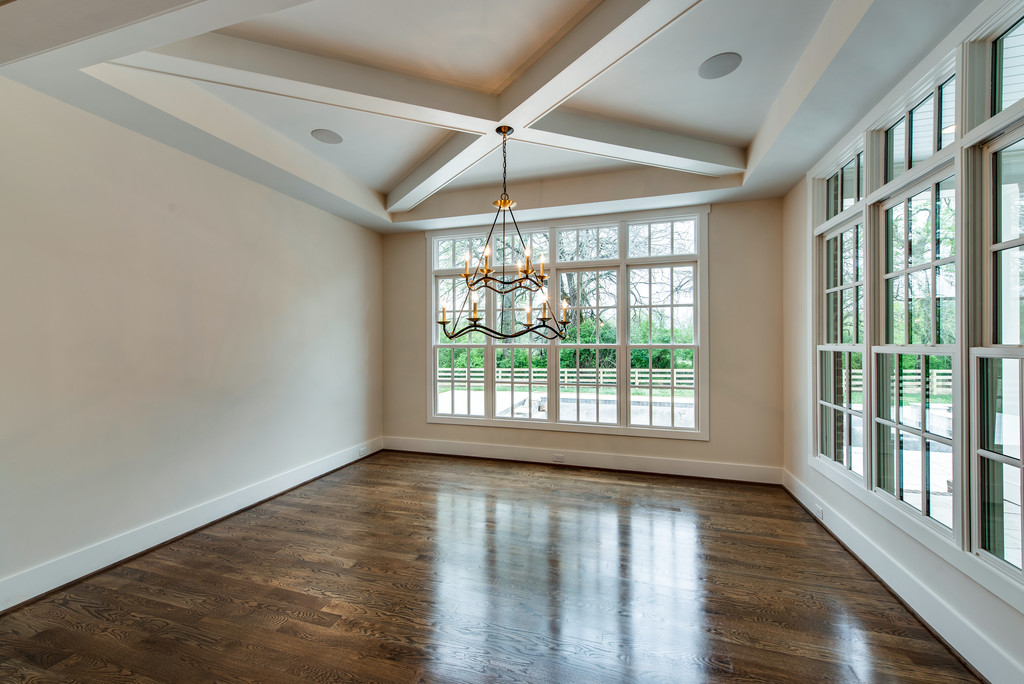

  • 10′ first floor ceiling heights, 13′ Family Room, coffered Breakfast Room, 11′ Kitchen
  • Large bonus room
  • 9′ second level ceiling heights
Purchase Options
Questions?

Sailer Design has been honored to be the architect for a number of Southern Living Showcase Homes. Part of this honor means this particular plan is exclusively available through southernliving.com.

We do! You can view all Sailer Design plans sold exclusively on southernliving.com here: Southern Living House Plans →

Purchase Plan

This plan is available as a Southern Living house plan.

Purchase Brochure

Or purchase a Printable Brochure here on sailerdesign.com

$10.00 $3,970.50

Clear
Questions?
Your purchase of a Sailer Design plan includes the foundation plan, floor plans, all exterior elevations, and cornice details. Learn more →
We’d love to modify our plan to meet your needs. Many of our plans already include future expandable space. While it is easier to increase the square footage of a plan than it is to eliminate square footage, some of our plans can be made smaller. Contact us with your request and for a quote for these changes. Personalize this Plan →

Yes, we can flip the plan to meet your needs. For example, if the plan has the garage on the right side, but you need the garage on the left, we can reverse it.

Building costs vary greatly by region. We suggest consulting with a local builder to provide a building cost estimate.
Purchase Plan
Clear
Personalize This PLan
Ask a Question

We would love to answer any questions you may have!

If it is easier to call:

How would you prefer to be contacted?
Are you building in Middle TN?*
This field is for validation purposes and should be left unchanged.

What's Included

Foundation Plan – ¼” scale

Documentation of the footings, foundation walls, and basic structure. A licensed structural engineer may be required at the Owner’s expense.

First Floor Plan – ¼” scale

Location and sizes of rooms, door and window sizes, dimensions, and notes of special concern.

Second Floor Plan – ¼” scale

Location and sizes of rooms, door and window sizes, dimensions, and notes of special concern.

Roof Plan – ¼” scale

Documentation of the proposed roof form indicating slopes and special roof structures and their locations.

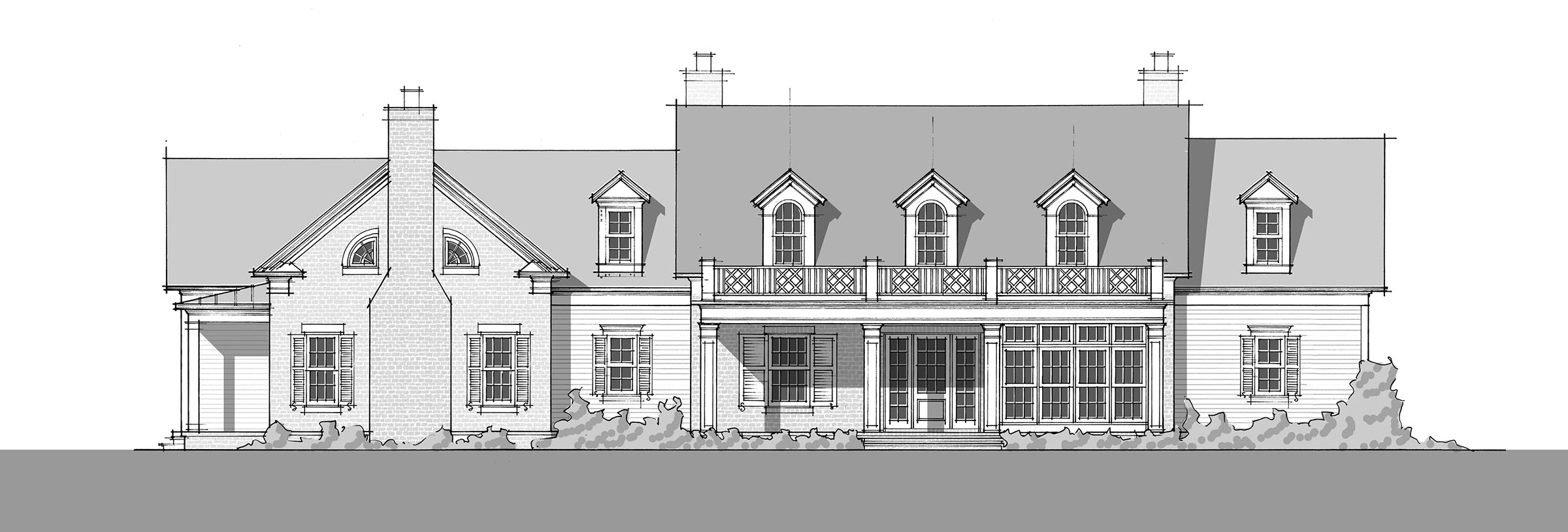

Elevations – ¼” scale

Front, rear, right and left side exterior elevations. Documentation of the exterior design with indications of heights, materials, and details.

Building Details – 1” scale

Selected exterior details (cornice details, porch details, etc.).

What's Not Included

Architectural and Engineering stamps

Some cities and states require a licensed architect or engineer to review and stamp a set of Construction Documents. If your local building department requires one, you will need to engage a local architect or engineer for review and stamping.

Site-specific foundation plan

The included foundation plan is meant to serve as a basic guide for a typical foundation and is not site or location-specific. Sailer Design LLC recommends that you have a local designer or licensed engineer to review the plans and provide a site-specific foundation plan as necessary.

Heating, plumbing and electrical plans

Due to variations in climate and building codes, these should be supplied by local contractors. We suggest you have a local electrical engineer, mechanical engineer, or builder provide these drawings as required for permits and construction.

Material quantity list

Once your personal selections are made (types of windows, doors, exterior materials, etc…) this list should be obtained from your contractor or local building materials supplier.

Material selections

Final material selections are the responsibility of you and your builder, including proper installation.

Construction Documents

Our home plan packages offer a complete design of our homes. However, due to the uniqueness of each building site, our Construction Documents are not fully engineered to meet the requirements of each local building code, specific regional conditions, and individual building site. The plans are intended to indicate design intent and basic construction detailing. It is your responsibility to ensure that you have obtained the proper professional assistance to provide standard construction details and practices, which will result in a structurally sound and weatherproofed finished product. Variations in standard sizes (i.e. windows and doors), thicknesses, types and uses of different materials can change details. Local codes, ordinances, regulations, foundation requirements, and the layout of mechanical, electrical and plumbing may also require changes to the details.
