Ashford II - Front Elevation_2400

VIEW FLOORPLANS

4

BEDS

4.5

BATHS

5041

SQ. FT.

4

BEDS

4.5

BATHS

5041

SQ. FT.

VIEW FLOORPLANS

Plan Details

This stunning two-story open concept farmhouse features four bedrooms, four and a half baths, and three garage bays. Front and rear covered porches allow for seamless indoor and outdoor living.

Entry from the front porch to the foyer shows off the open concept family room.

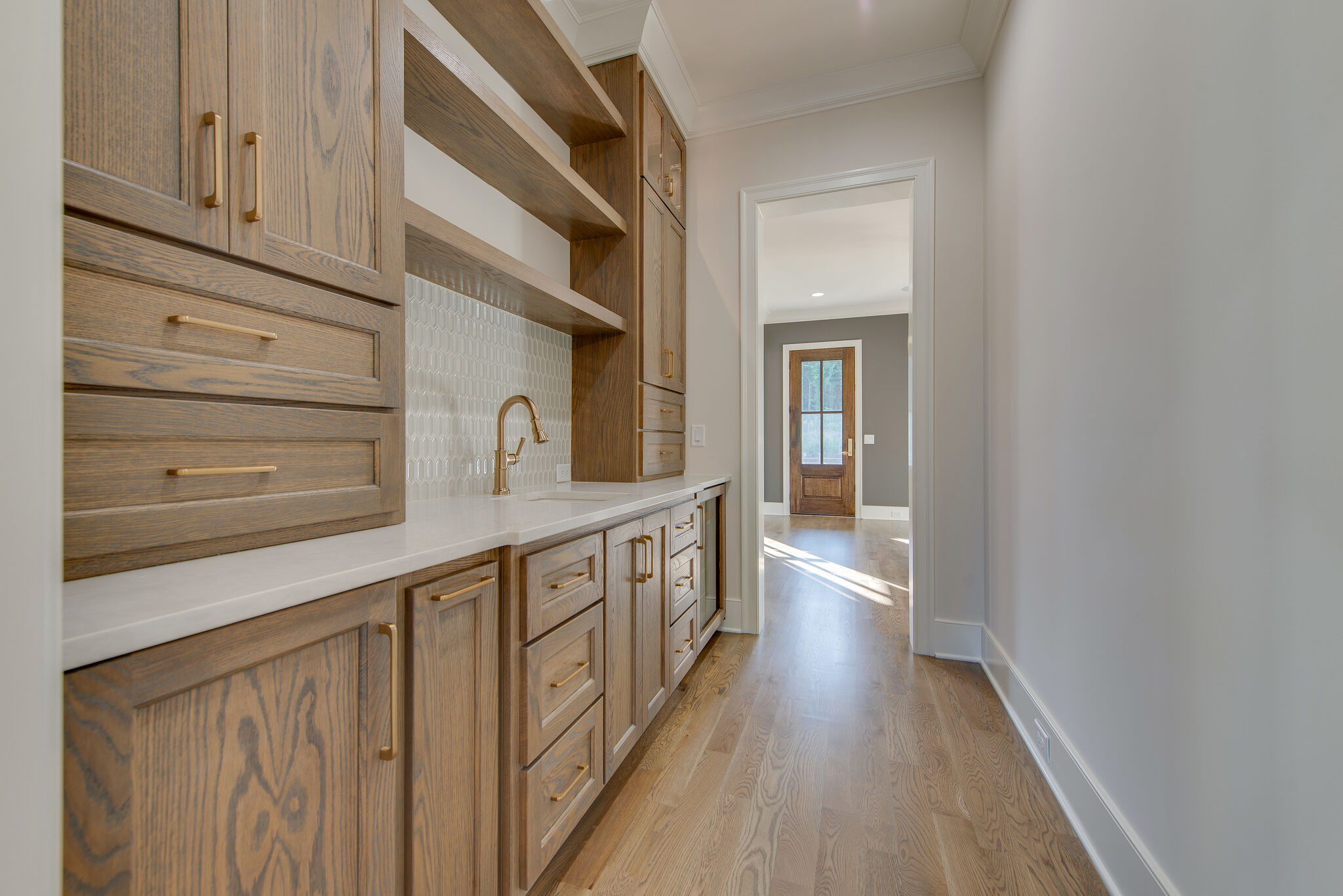

The study at the front of the home also opens to the front porch via two doors, giving an open and airy feel to the space. A butler’s pantry connects the study to the kitchen, with a sink, refrigerator, and ice maker.

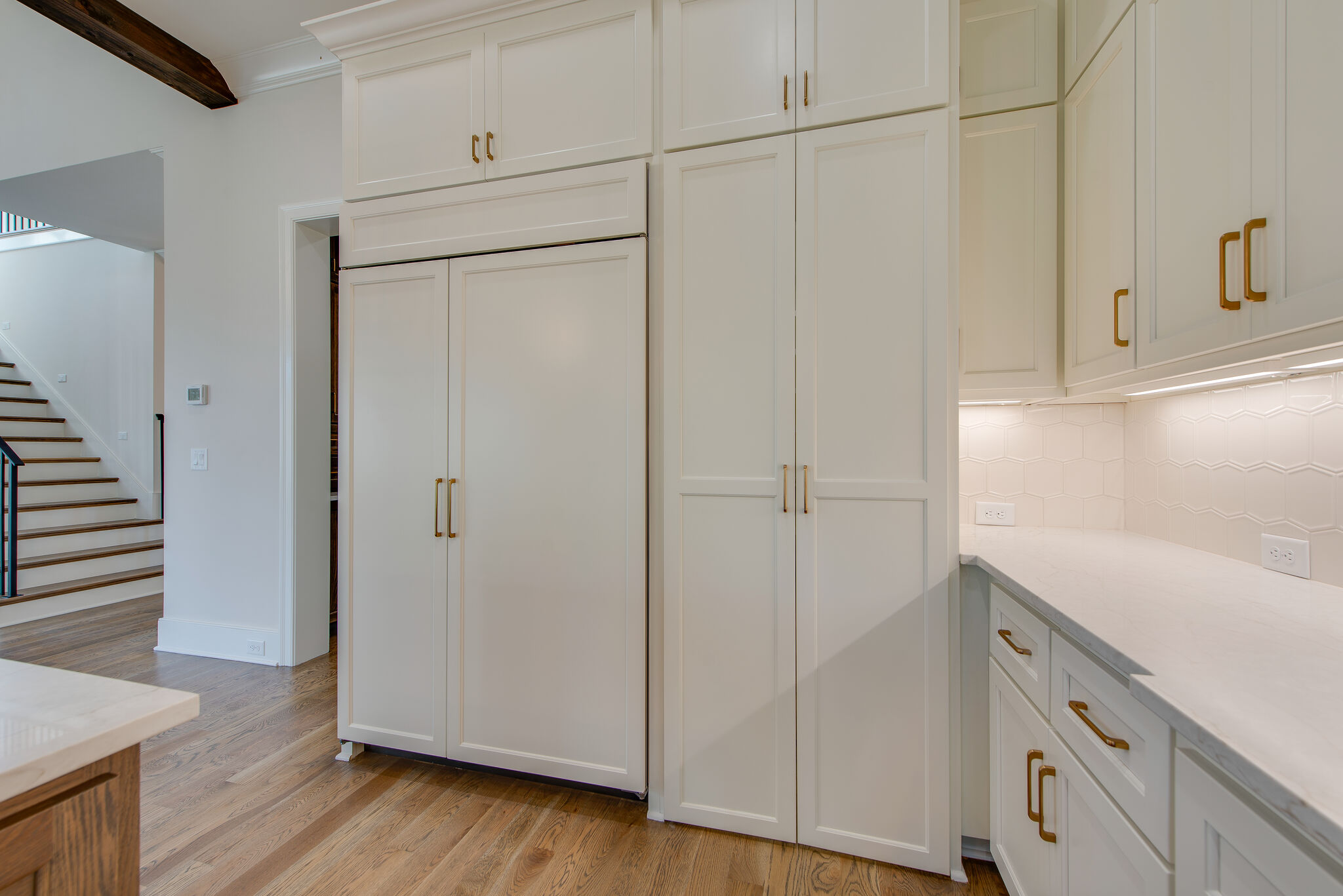

The kitchen has a large island with a sink, a spacious traditional pantry, and is open to the dining room at the rear of the home. The impressive family room boasts vaulted ceilings and a fireplace flanked by built in window seats. Sliding doors from the family room open to the inviting rear covered porch, featuring vaulted ceilings, a fireplace, and a grill.

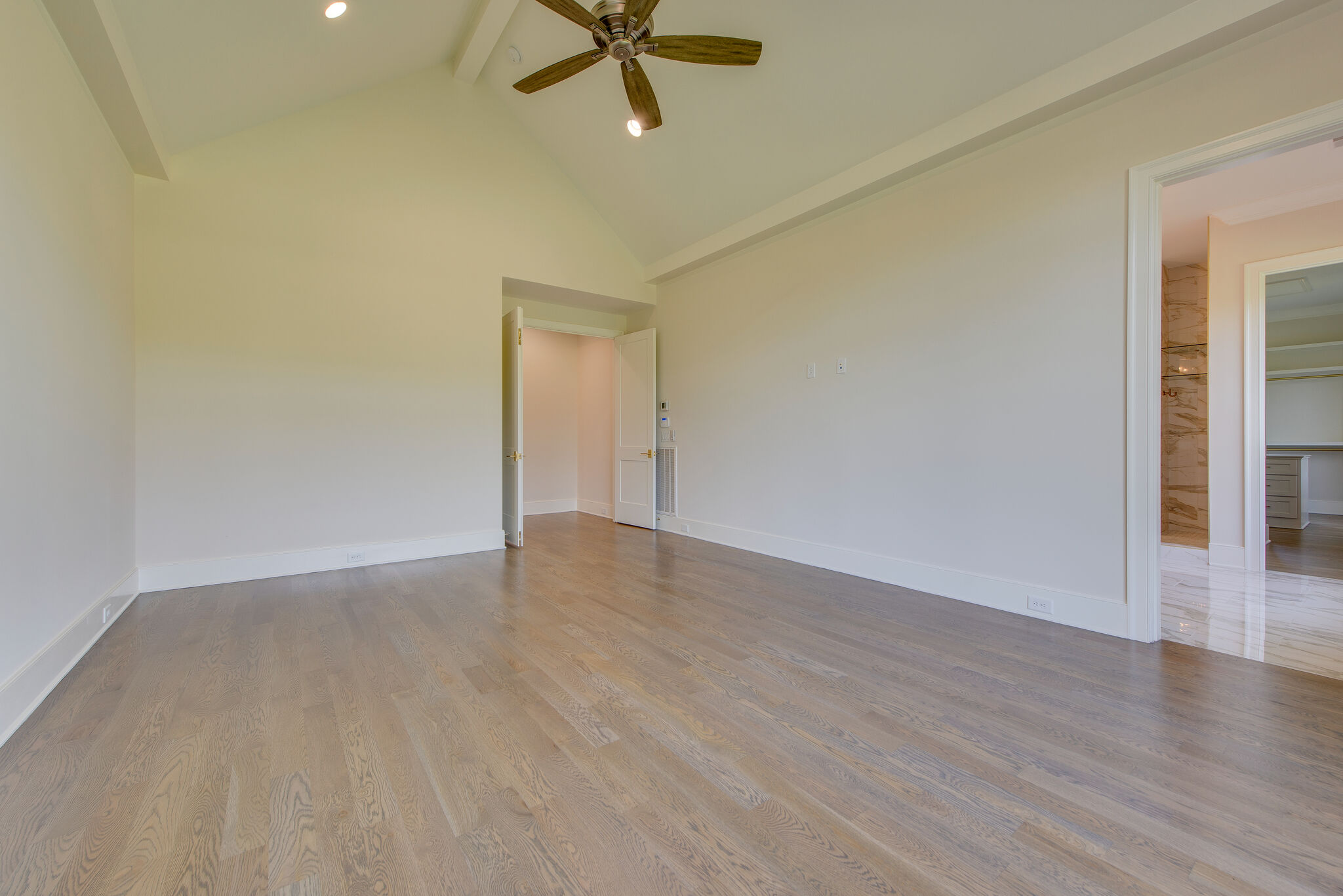

Beyond the kitchen, the luxurious master suite has a large shower and soaking tub and spacious his and hers closets. The friend’s entry sits between the two garage spaces, and accesses a powder room, mud room, and a laundry room with space for an extra refrigerator. A main floor guest suite sits at the front of the home with a full bath, walk in closet, and linen storage. Additional storage is located under the stairs by the family room.

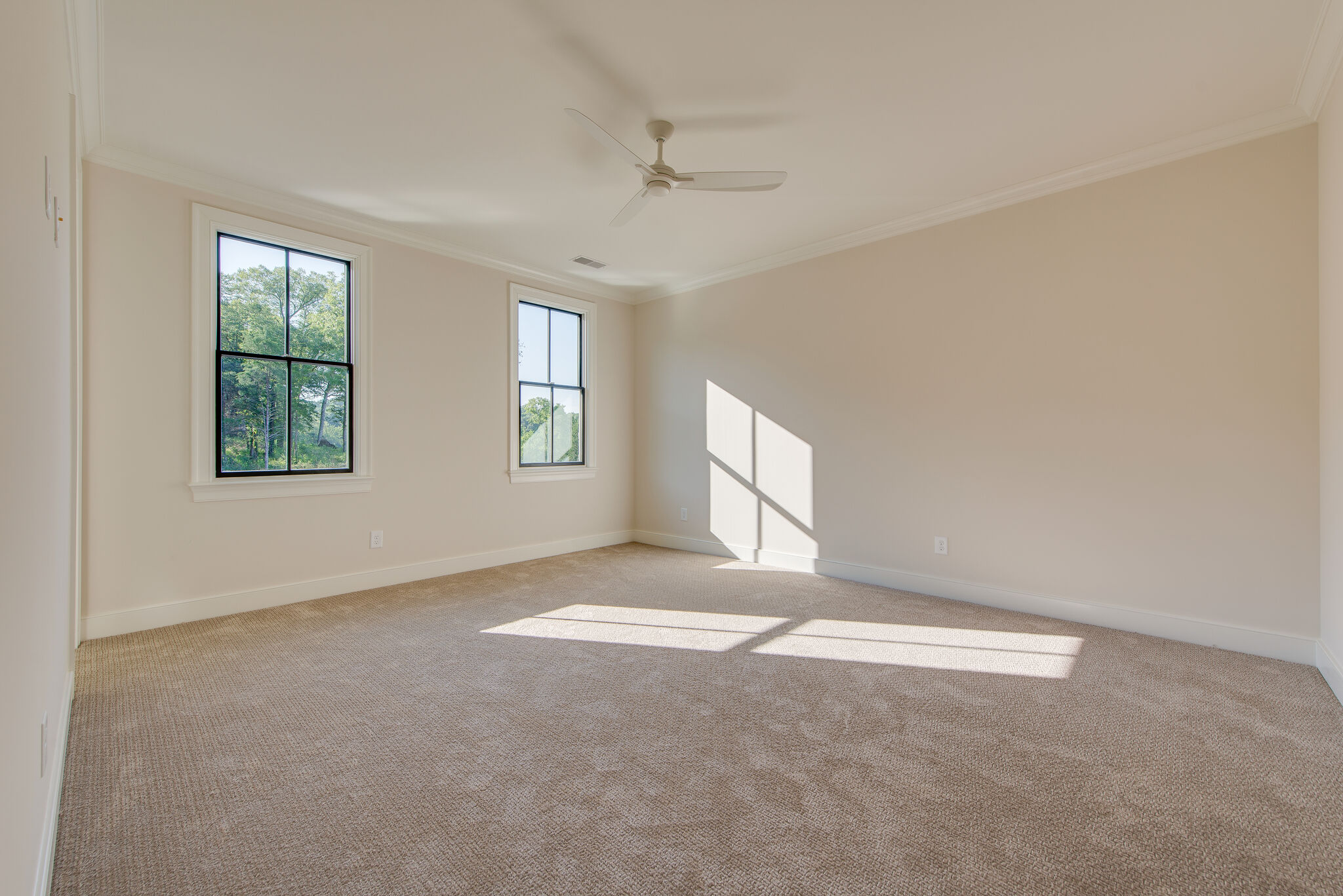

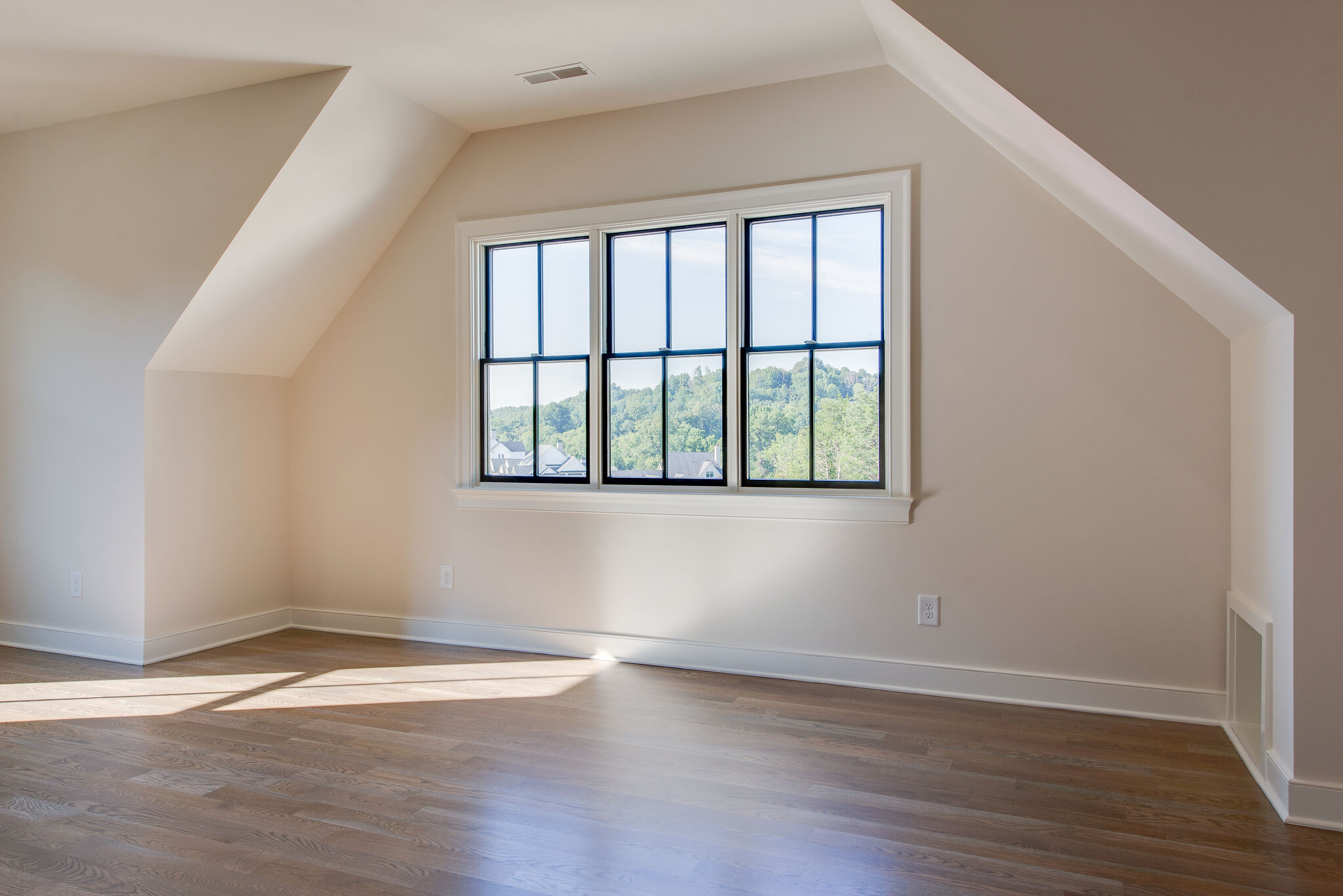

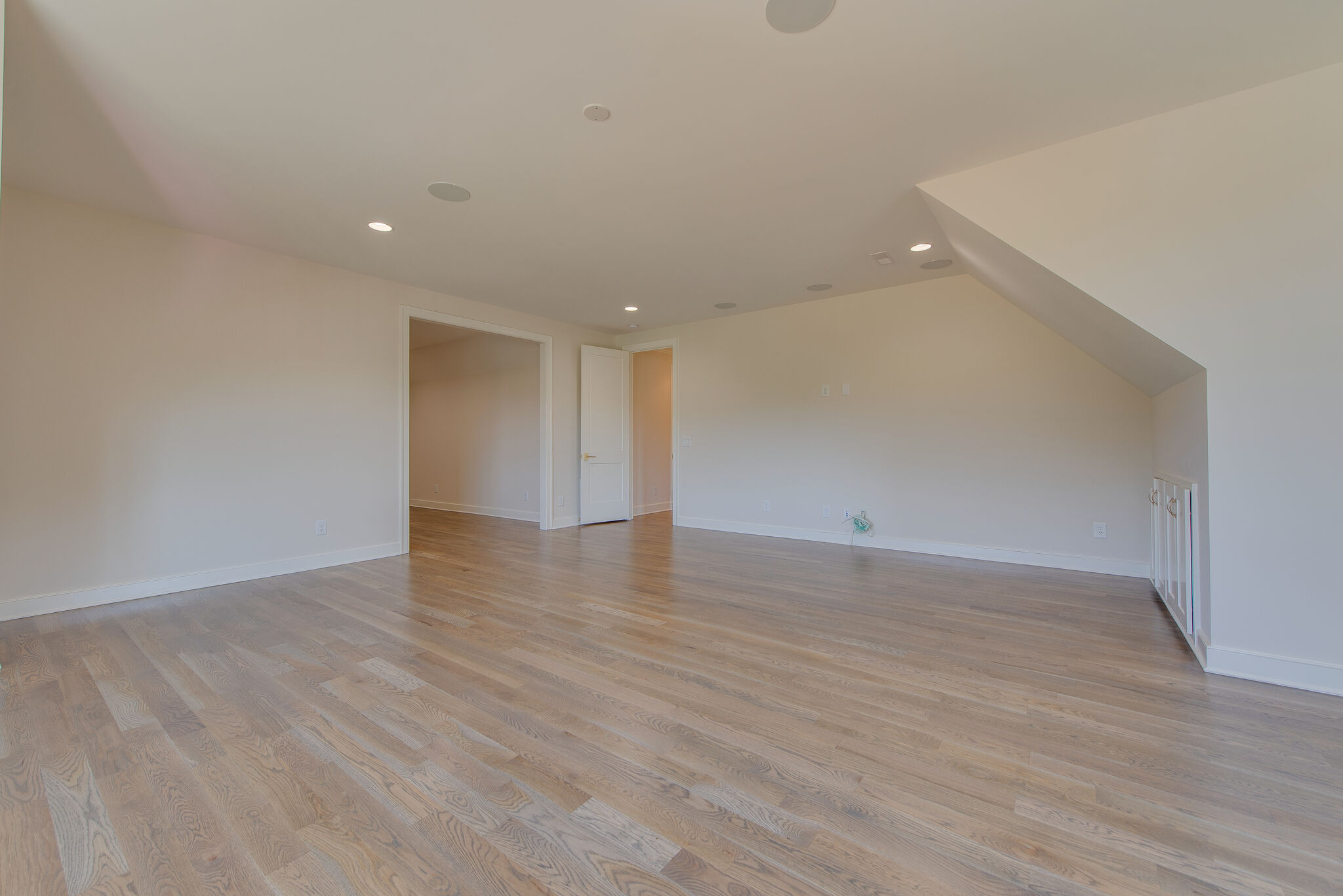

The second level of the Ashford II is home to two bedrooms, each with walk-in closets and full baths. The upstairs also contains a spacious bonus room and a large storage area.

What’s included:

  1. Foundation Plan – ¼” scale: Documentation of the footings, foundation walls, and basic structure. A licensed structural engineer may be required at the Owner’s expense.
    First Floor Plan – ¼” scale: Location and sizes of rooms, door and window sizes, dimensions, and notes of special concern.
  2. Second Floor Plan – ¼” scale: Location and sizes of rooms, door and window sizes, dimensions, and notes of special concern.
  3. Roof Plan – ¼” scale: Documentation of the proposed roof form indicating slopes and special roof structures and their locations.
  4. Elevations – ¼” scale: Front, rear, right and left side exterior elevations. Documentation of the exterior design with indications of heights, materials, and details.
  5. Building Details – 1” scale: Selected exterior details (cornice details, porch details, etc.).

Our home plan packages offer a complete design of our homes. However, due to the uniqueness of each building site, our Construction Documents are not fully engineered to meet the requirements of each local building code, specific regional conditions, and individual building site. The plans are intended to indicate design intent and basic construction detailing. It is your responsibility to ensure that you have obtained the proper professional assistance to provide standard construction details and practices, which will result in a structurally sound and weatherproofed finished product. Variations in standard sizes (i.e. windows and doors), thicknesses, types and uses of different materials can change details. Local codes, ordinances, regulations, foundation requirements, and the layout of mechanical, electrical and plumbing may also require changes to the details.

What’s not included:

  1. Architectural and Engineering stamps – Some cities and states require a licensed architect or engineer to review and stamp a set of Construction Documents. If your local building department requires one, you will need to engage a local architect or engineer for review and stamping.
  2. Site-specific foundation plan – The included foundation plan is meant to serve as a basic guide for a typical foundation and is not site or location-specific. Sailer Design LLC recommends that you have a local designer or licensed engineer to review the plans and provide a site-specific foundation plan as necessary.
  3. Heating, plumbing and electrical plans – Due to variations in climate and building codes, these should be supplied by local contractors. We suggest you have a local electrical engineer, mechanical engineer, or builder provide these drawings as required for permits and construction.
  4. Material quantity list – Once your personal selections are made (types of windows, doors, exterior materials, etc…) this list should be obtained from your contractor or local building materials supplier.
  5. Material selections – Final material selections are the responsibility of you and your builder, including proper installation.

What’s included:

  1. Foundation Plan – ¼” scale: Documentation of the footings, foundation walls, and basic structure. A licensed structural engineer may be required at the Owner’s expense.
    First Floor Plan – ¼” scale: Location and sizes of rooms, door and window sizes, dimensions, and notes of special concern.
  2. Second Floor Plan – ¼” scale: Location and sizes of rooms, door and window sizes, dimensions, and notes of special concern.
  3. Roof Plan – ¼” scale: Documentation of the proposed roof form indicating slopes and special roof structures and their locations.
  4. Elevations – ¼” scale: Front, rear, right and left side exterior elevations. Documentation of the exterior design with indications of heights, materials, and details.
  5. Building Details – 1” scale: Selected exterior details (cornice details, porch details, etc.).


READ MORE >

Highlights

overall dimensions 80' w x 80' d

  • Farmhouse style
  • 5,041 square feet
  • Spacious Master Bath
  • Vaulted Family Room and rear Porch
  • 10′ first floor ceiling heights, vaulted Family Room and Porch, vaulted Master Bedroom, 9′ second level ceiling heights
Choose an option
Full Size PDF
$3,780.75
Pricing set
$2,520.50
Printable Brochure
$10.00
Clear

Questions? 615-571-2040
